| 1 |
Audio/COMAND display, signal |
21C |
| 2 |
Switch-on request, signal |
20C |
| 3 |
|
20G |
| 4 |
Circuit 15R/circuit 15, status ON |
18F |
| 4 |
Circuit 15R/circuit 15, status ON |
14E |
| 5 |
|
5F |
| 5 |
|
12F |
| 5 |
|
17F |
| 5 |
|
20D |

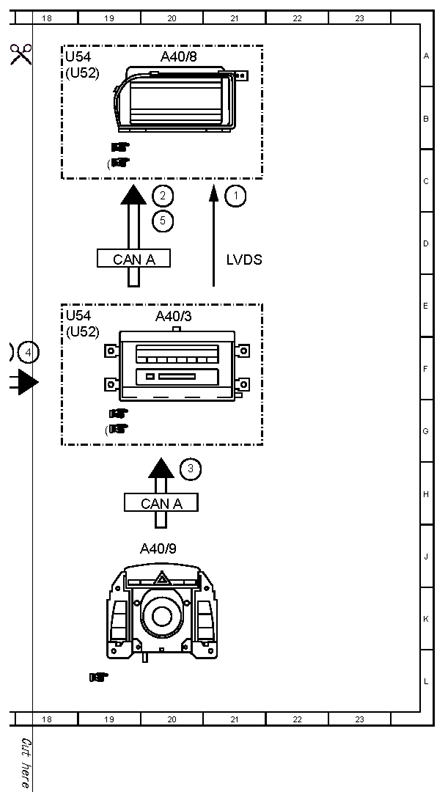

| A40/3 |
COMAND control unit |
20E |
| A40/8 |
COMAND display |
20A |
| A40/9 |
Front central operating unit |
20J |
| A8/1 |
Transmitter key |
14B |
| CAN A |
Telematics CAN |
19D |
| CAN A |
Telematics CAN |
19H |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
13D |
| CAN F |
Central CAN |
16F |
| LIN 1 |
Instrument panel LIN |
4F |
| LVDS |
Low voltage differential signal |
21D |

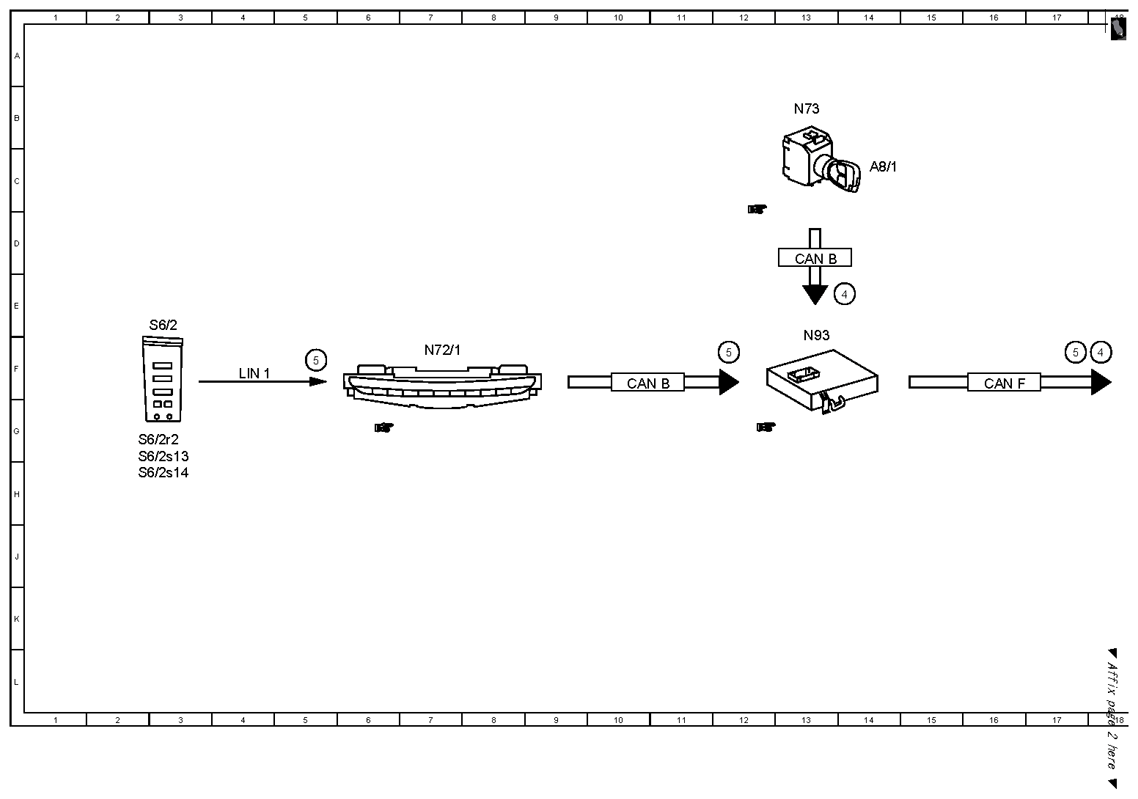

| N72/1 |
Upper control panel control unit |
7F |
| N73 |
EIS [EZS] control unit |
13B |
| N93 |
Central gateway control unit |
13E |
| S6/2 |
Cockpit switch group |
2E |
| S6/2r2 |
COMAND display brightness control |
3G |
| S6/2s13 |
COMAND display swivel left switch |
3G |
| S6/2s14 |
COMAND display swivel right switch |
3H |
| U52 |
Valid for Japan |
18A |
| U52 |
Valid for Japan |
18A |
| U54 |
Valid for all except Japan |
18E |
| U54 |
Valid for all except Japan |
18E |
