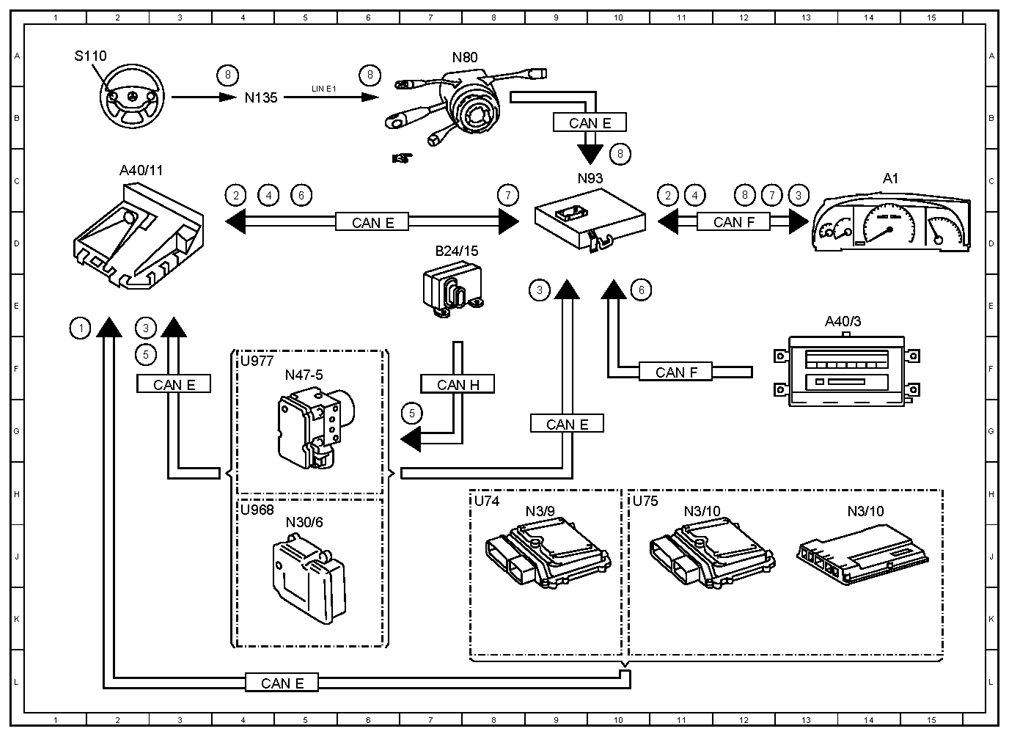

| 1 |
Circuit 61, status |
1E |
| 2 |
Speed Limit Assist status |
11C |
| 2 |
Speed Limit Assist status |
4C |
| 3 |
Wheel speed, signal |
2E |
| 3 |
Wheel speed, signal |
9E |
| 3 |
Wheel speed, signal |
13C |
| 4 |
Vehicle speed, signal |
4C |
| 4 |
Vehicle speed, signal |
11C |
| 5 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
2F |
| 5 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
7G |
| 6 |
Navigation data, signal |
10E |
| 6 |
Navigation data, signal |
5C |
| 7 |
Speed limit indication, request |
8C |
| 7 |
Speed limit indication, request |
12C |
| 8 |
Multifunction steering wheel button group, signal |
10C |
| 8 |
Multifunction steering wheel button group, signal |
6A |
| 8 |
Multifunction steering wheel button group, signal |
4A |
| 8 |
Multifunction steering wheel button group, signal |
12C |
| A1 |
Instrument cluster |
14C |
| A40/11 |
Multifunction camera |
2C |
| A40/3 |
COMAND control unit |
13E |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
7D |
| CAN E |
Chassis CAN |
6D |
| CAN E |
Chassis CAN |
3F |
| CAN E |
Chassis CAN |
4L |
| CAN E |
Chassis CAN |
9G |
| CAN E |
Chassis CAN |
9B |
| CAN F |
Central CAN |
12D |
| CAN F |
Central CAN |
11F |
| CAN H |
Vehicle dynamics CAN |
7F |
| LIN E1 |
Steering LIN |
5B |
| N135 |
Steering wheel electronics |
4B |
| N3/10 |
ME-SFI [ME] control unit |
11H |
| N3/10 |
ME-SFI [ME] control unit |
14H |
| N3/9 |
CDI control unit |
9H |
| N30/6 |
Regenerative braking system control unit |
5J |
| N47-5 |
ESP control unit |
5F |
| N80 |
Steering column module |
7A |
| N93 |
Central gateway control unit |
9C |
| S110 |
Left multifunction steering wheel button group |
1A |
| U74 |
Valid for diesel engines |
8H |
| U75 |
Valid for gasoline engines |
10H |
| U968 |
Valid for mild hybrid drive |
4H |
| U977 |
Not valid for mild hybrid drive |
4F |
