Fuse assignment of front prefuse box - GF54.15-P-1256-07SX

MODEL 221.0 /1, 216.3 up to Model Year 8

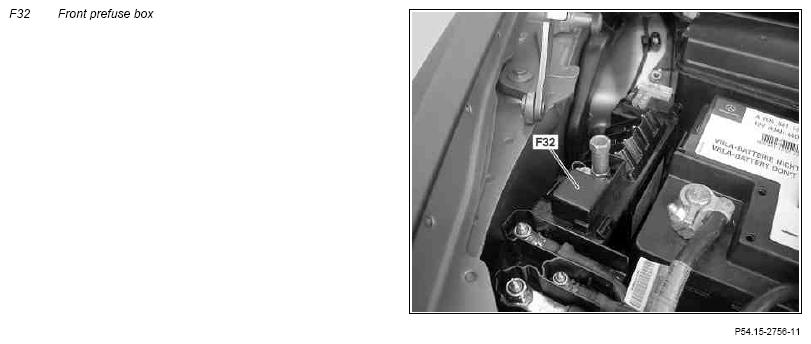

Fig 1: Front Pre-Fuse Box - Model 221.0 /1, 216.3 Up To Model Year 8

Courtesy of MERCEDES-BENZ USA

Fuse Identification	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
F32f1	30	35.0 BK	Starter (M1)	400
F32f2	30	50.0 BK	Not valid for engine 642:  Alternator (G2)	150
			Valid for engine 642:  Alternator (G2)	200
F32f3	30	-	-	150
F32f4	30	12.0 RD	AAC with integrated control additional fan motor (M4/7)	150
F32f5	30	16.0 RD	Valid for engine 642:  PTC heater booster (R22/3)	200
F32f6	30	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	200
F32f7	30	4.0 RD	ESP control unit (N47-5)	40
F32f8	30	2.5 BK	ESP control unit (N47-5)	25
F32f9	30	2.5 RD	Front SAM control unit with fuse and relay module (N10/1)	20
F32f10	30	0.75 RD	Vehicle power supply control unit (N82/1)	7.5
