Cover window frame on rear door with leather - AR72.12-P-0500SXS

MODEL 221.1 with CODE (Z07) Top protection

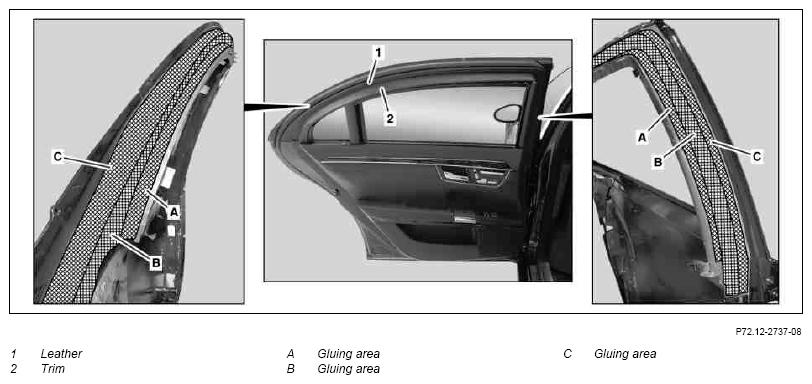

Fig 1: Identifying Rear Door Cover Window Frame With Leather (1 Of 2)

Courtesy of MERCEDES-BENZ USA

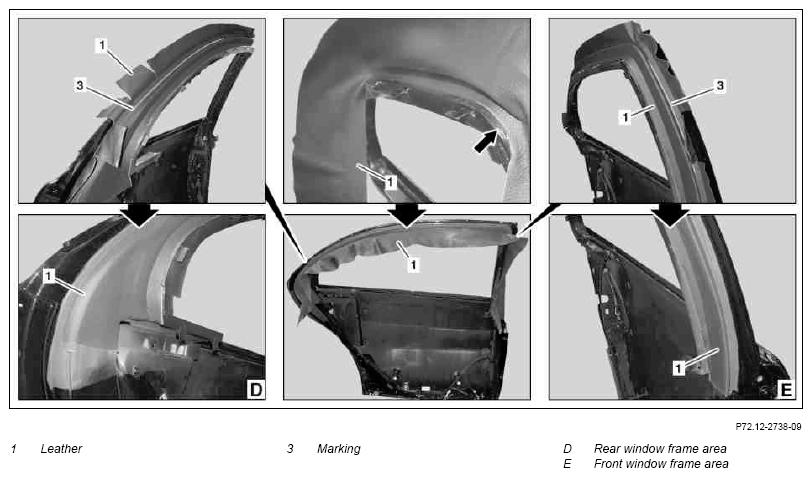

Fig 2: Identifying Rear Door Cover Window Frame With Leather (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
1	Remove paneling (2) from window frame on left or right rear door		Fig 3
2	Remove door frame seal from rear door		AR72.12-P-1015SXS
3	Pull leather (1) off window frame
4	Clean adhesive areas (A, B, C) on window frame	Pure benzine/benzine	*BR00.45-Z-1048-04A
	Cover window frame
5	Coat rear of leather (1) and adhesive area (A) on window frame over entire surface with MB special adhesive	MB special adhesive	*BR00.45-Z-1002-02A
6	Position bottom edge of leather (1) on inner butt edge (arrow) on window frame and smooth along adhesive area (A) with suitable tool	Start at upper corner of window frame. Ensure that bonding is wrinkle-free.
7	Coat adhesive area (B) on window frame over full surface with MB special adhesive	MB special adhesive	*BR00.45-Z-1002-02A
8	Smooth leather (1) in upper corner of window frame starting in the corner and working in both directions toward the outside	Ensure that bonding is wrinkle-free.
9	Glue on leather (1) in adhesive area (B) starting at top toward rear and then at top toward front and smooth with suitable tool	Ensure that bonding is wrinkle-free.
10	Coat adhesive area (C) on window frame over full surface with MB special adhesive	MB special adhesive	*BR00.45-Z-1002-02A
11	Glue on leather (1) in adhesive area (C) starting in middle toward rear and smooth with suitable tool	Ensure that bonding is wrinkle-free.
12	Notch leather (1) not in contact in rear area	This relieves the tension in the leather (1), and ensures that it can glued wrinkle-free.
13	Glue on leather (1) in adhesive area (C) starting in middle toward front and smooth with suitable tool	Ensure that bonding is wrinkle-free.
14	Notch leather (1) not in contact in front area	This relieves the tension in the leather (1), and ensures that it can glued wrinkle-free.
15	Draw marking (3) with a distance of approx. 14 mm from upper inner edge of window frame
16	Cut off leather (1) along marking (3) with suitable blade	Repair damage to paint with suitable touch-up paint pen.
17	Adapt leather (1) to contour of window frame in front area and cut (picture E)
18	Adapt leather (1) to contour of window frame in rear area and cut (picture D)
	Install
19	Completely remove adhesive residues from adhesive area for door frame seal	Pure benzine/benzine	*BR00.45-Z-1048-04A
20	Install door frame seal		AR72.12-P-1015SXS
21	Install paneling (2) on window frame

Fig 3: Identifying Wedge Tool (1110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-02A	Adhesive Terokal 2444	A 000 989 92 71
BR00.45-Z-1048-04A	Pure benzine/benzine 100/140 (free of aromatic compounds), 5-liter metal canister, article no.: 17042	Otto Fischar GmbH & Co. KG
