Backup camera control unit component description - GF54.65-P-5030LEJ

MODEL 221.0/1, 216.3 with CODE (218) Backup camera with CODE (498) Japan version as of Model Year 09/Modification year 08

Illustrated on model 221.0

Location

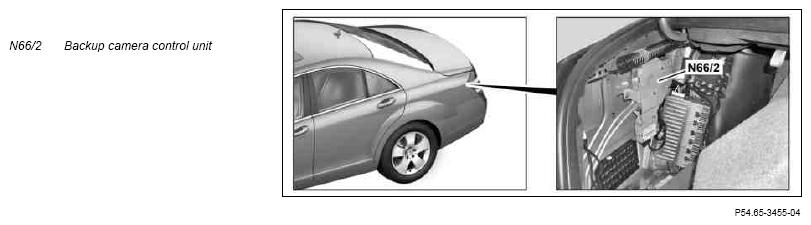

The backup camera control unit is located behind the paneling on the left side of the luggage compartment.

Task

The reversing camera control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The input factors are read in with the following connections:

• Interior CAN
• Direct line

Interior CAN

The following signals are read in with interior CAN by the:

by the central gateway control unit (N93):

• the signals from the steering angle sensor via the steering column tube module (N80) (N49)
• the status "Reversing camera activated" and vehicle speed signal by the instrument clusterA1

by the rear SAM control unit with fuse and relay module (N10/2):

• Liftgate status (trunk lid rotary tumbler microswitch (M14/7s3))

by the EZS control unit (N73)

• Circuit status (circuit 15)

Direct line

The following component is read in over a direct line:

• Reversing camera (B84/3)

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.

Actuation of components

The following components are actuated with a direct line:

• Backup camera
• COMAND controller unit (A40/3)

	Wiring diagram for backup camera control unit	Model 216	PE54.65-P-2102-99CAA
		Model 221	PE54.65-P-2102-99SAA
