Backup camera component description - GF54.65-P-5040SX
MODEL 221.0/1, 216.3 with CODE (218) Backup camera up to Model Year 08

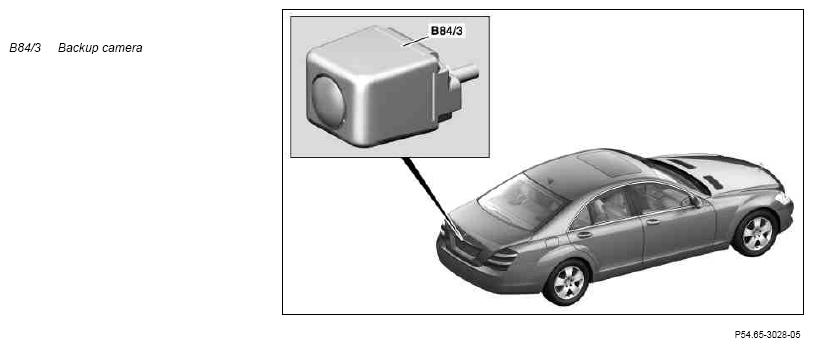

Shown on model 221.0
Location
The backup camera is mounted to the trunk lid next to the left license plate lamp (E19/1).
Task
- Surrounding area image of complete rear area
- Providing the camera pictures via a composite Video Baseband Signal for the backup camera control unit (N66/2)
Design
The backup camera is a color image camera with wide-angle lens.
