Backup camera (RFK), function - GF54.65-P-0005SX
MODEL 221.0/1, 216.3 with CODE (218) Backup camera up to Model Year 08
Function requirements
- Circuit 15 ON
- Trunk lid closed
- Reverse gear engaged
- Backup camera (RFK) activated in the instrument cluster under the menu item "Assist"

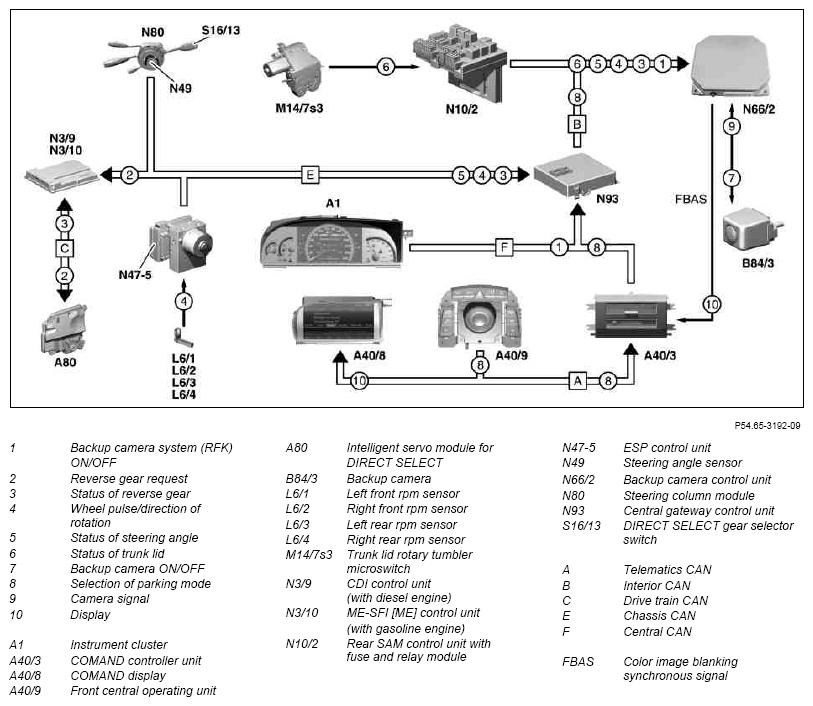

Overall description of RFK system
The RFK system assists the driver when parking and when backing up. With the aid of the backup camera the entire area surrounding the rear is transmitted.
The RFK system enables the driver to select between two parking modes:
- Back-in parking mode (parking when reversing)
- Parallel parking mode (parallel parking)
External environmental influence such as darkness, dust, fog or precipitation can restrict the functionality of the backup camera.
The backup camera control unit is the central controller unit in the RFK system. It transmits the real video pictures of the backup camera to the COMAND display via the COMAND controller unit.
The backup camera control unit superimposes extension lines over these real video images, which provide a driver with more detailed information on events in the area at the rear of the vehicle. The COMAND controller unit generates the associated optical warning messages in parallel parking mode.
Activation
The parking mode last selected is activated by engaging reverse gear. The front central operating unit enables the driver to change between the Back-In Parking mode and the Parallel Parking mode.
Abort
Parking assist is terminated if:
- the driver uses an excessively large steering angle
- the driver changes the steering angle while driving
- the steering angle sensor is not initialized or calibrated
- the backup camera is not initialized or calibrated
- the trunk lid is opened
If canceled the backup camera control unit only provides camera images (extension lines are no longer generated).
Deactivation
The parking assist is deactivated after 4 seconds:
- If "N" or "D" is engaged at the DIRECT SELECT gear selector switch
The parking assist is deactivated immediately:
- If "P" is engaged at the DIRECT SELECT gear selector switch
- if the function requirements are no longer applicable
- When the ignition is OFF
- Via the "Back" button (A40/9s2) in the front central operating unit
- If in the instrument cluster under the menu item "Assist" the backup camera system is switched off
Warning messages
The warning messages shown in the COMAND display are generated by the COMAND controller unit. The warning messages disappear automatically after 3 s.
All the warning messages can be switched off by pressing the turn/push control (A40/9s11) in the front central operating unit.
If the driver selects a too large steering angle the message "Please turn back the steering wheel" is shown in the COMAND display.
Fault messages
In the event of a signal missing from the backup camera or other defective signals no display ensues in the COMAND display.
The error message is filed in the memory of the backup camera control unit.
National version
In this national version a voice output can also be selected for the Parallel Parking Mode. The voice output takes place in the Japanese or English and is activated or deactivated in the instrument cluster.
As an alternative the warning messages in the COMAND display can likewise be reproduced in Japanese or English.
| Backup camera (RFK) location of components | GF54.65-P-0005-01SX | ||
| Backup camera (RFK), block diagram | GF54.65-P-0005-02SX | ||
| Back-in parking, function | GF54.65-P-2005SX | ||
| Parallel parking, function | GF54.65-P-2006SX | ||
| Instrument cluster, component description | A1 Model 221 |
GF54.30-P-6000SX | |
| COMAND controller unit, component description | A40/3 Model 221 without code (494) USA version and without code (498) Japan version |
GF82.85-P-3136SX | |
| Model 221 with CODE (498) Japan version | GF82.85-P-3136SXJ | ||
| Model 221 with CODE (494) USA version | GF82.85-P-3136SXU | ||
| Cockpit central display, component description | A40/8 Model 221 |
GF54.30-P-6100SX | |
| Front central operating unit, component description | A40/9 Model 221 |
GF54.21-P-4500SX | |
| Intelligent servo module (ISM) component description | A80 Model 221 with transmission 722.6 |
GF27.19-P-4015SXA | |
| Model 221 with transmission 722.9 | GF27.19-P-4015SX | ||
| Backup camera component description | B84/3 | GF54.65-P-5040SX | |
| Wheel rpm sensor, component description | L6/1, L6/2, L6/3 and L6/4 | GF42.45-P-5134SX | |
| CDI control unit component description | N3/9 Model 221 with engine 642 |
GF07.16-P-6000SX | |
| ME-SFI [ME] control unit, component description | N3/10 Model 221 with engine 272.965 and 273.961 |
GF07.61-P-6000V | |
| ME-SFI control unit, location/task/design/function | N3/10 Model 221 with engine 275.953/982 |
GF07.61-P-5000M | |
| Rear SAM control unit with fuse and relay module, component description | N10/2 | GF54.21-P-6030SX | |
| Description of components in ESP control unit | N47-5 | GF42.45-P-5118SX | |
| Steering angle sensor, component description | N49 | GF42.45-P-5107SX | |
| Backup camera control unit component description | N66/2 | GF54.65-P-5030SX | |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX | |
| Steering column module component description | N80 | GF54.21-P-6050SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX | |
| Gear selector switch, component description | S16/13 Model 221 with transmission 722.6 |
GF27.19-P-5148SXA | |
| Model 221 with transmission 722.9 | GF27.19-P-5148SX |
