Trailer recognition control unit, component description - GF31.19-P-4050SX

MODEL 221.0/1 with CODE (550) Trailer hitch up to Model Year 8

Location

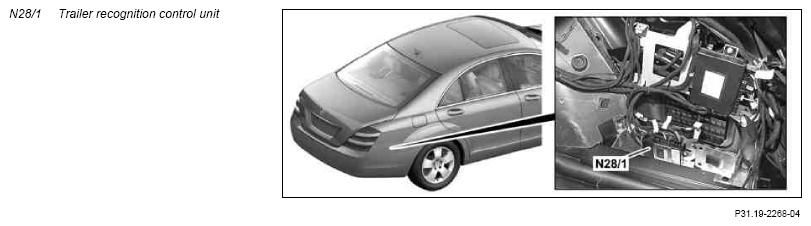

The trailer recognition control unit is located in the right of the luggage compartment behind the wheelhouse paneling.

Task

• Trailer recognition
• Actuation and monitoring of trailer illumination
• Monitoring of ball neck lock
• Consumer shutoff of circuit 30 at the trailer hitch socket (13-pin) (X58)
• Trailing monitoring (on vehicles with code (551) Anti-theft alarm system (ATA [EDW]))

Discrete inputs

• Circuit 15 for emergency light switching
• Tml. 30
• (Term. 31)
• Circuit 54 stop lamp switch signal
• Ball neck locked
• Ball neck not locked

Discrete outputs

• Circuit 15 at trailer hitch power outlet
• Circuit 30 at trailer hitch power outlet
• Stop lamp
• Rear fog lamp
• Backup lamp
• Left/right turn signal lamp
• Left/right taillamp and license plate lamp
• Warning light emitting diode "trailer hitch not OK"
• Locking switch ground

CAN signals

The trailer recognition control unit is a participant of the interior CAN.
