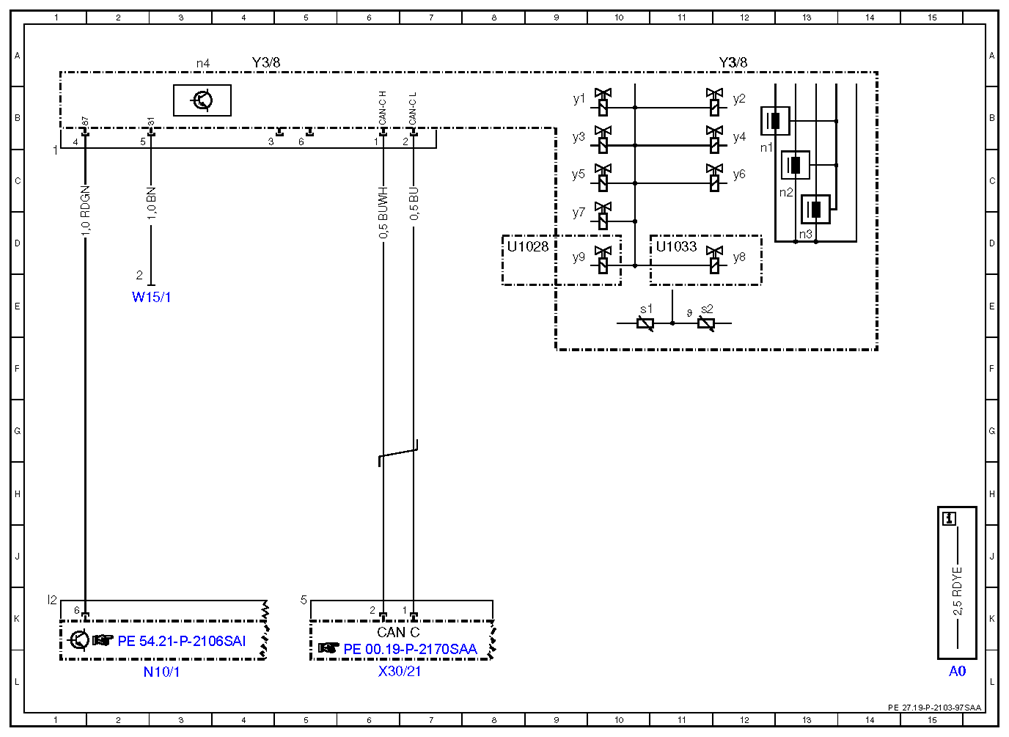

Color code key |
15L |
| CAN C |
Drive train CAN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| U1028 |
Valid for engine 157 |
8D |
| U1033 |
Valid for all except engine 157 |
11D |
| W15/1 |
Ground (right footwell) |
2E |
| X30/21 |
Drive train CAN voltage distributor connector |
6L |
| Y3/8 |
Electric control unit (VGS) |
4A |
| Y3/8 |
Electric control unit (VGS) |
12A |
| Y3/8n1 |
Turbine speed sensor (VGS) |
12C |
| Y3/8n2 |
Internal speed sensor (VGS) |
13C |
| Y3/8n3 |
Output speed sensor (VGS) |
13D |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
3A |
| Y3/8s1 |
Selection range sensor (VGS) |
10E |
| Y3/8s2 |
Transmission oil temperature sensor (VGS) |
11E |
| Y3/8y1 |
Working pressure control solenoid valve (VGS) |
9B |
| Y3/8y2 |
K1 clutch control solenoid valve (VGS) |
12B |
| Y3/8y3 |
K2 clutch control solenoid valve (VGS) |
9B |
| Y3/8y4 |
K3 clutch control solenoid valve (VGS) |
12B |
| Y3/8y5 |
B1 brake control solenoid valve (VGS) |
9C |
| Y3/8y6 |
B2 brake control solenoid valve (VGS) |
12C |
| Y3/8y7 |
B3 brake control solenoid valve (VGS) |
9D |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve (VGS) |
12D |
| Y3/8y9 |
Start-up clutch control solenoid valve (VGS) |
9D |
