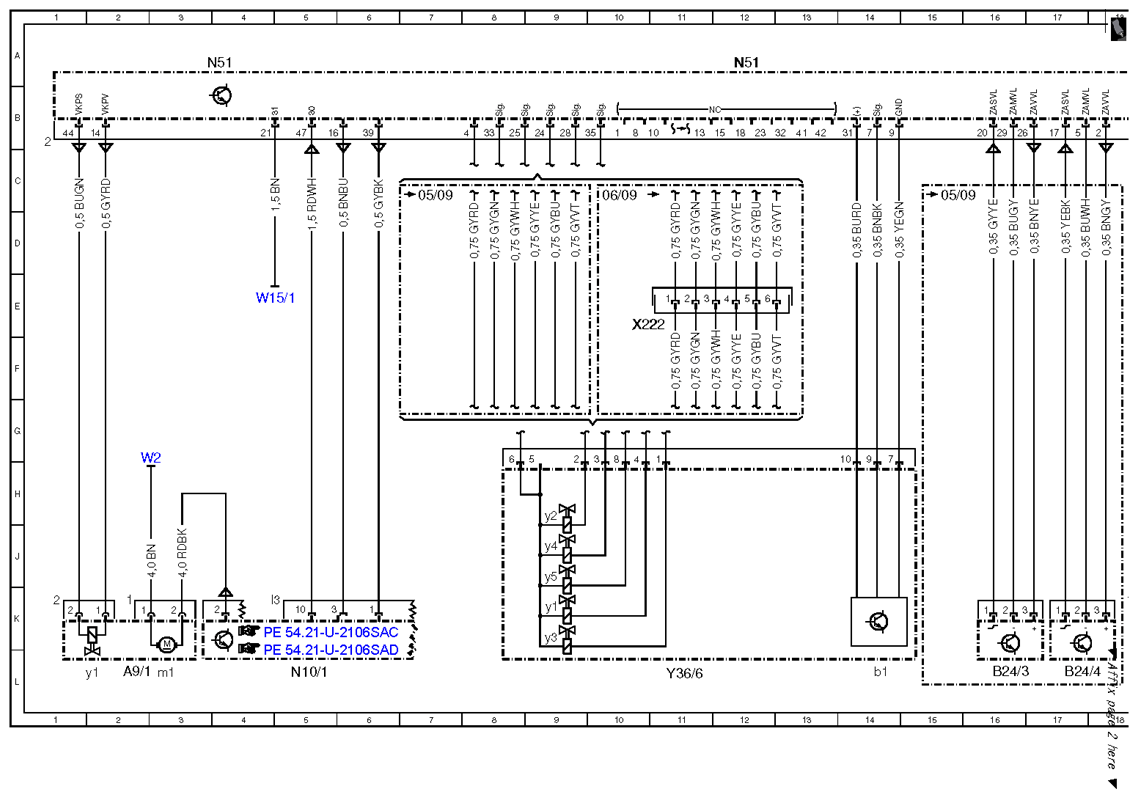

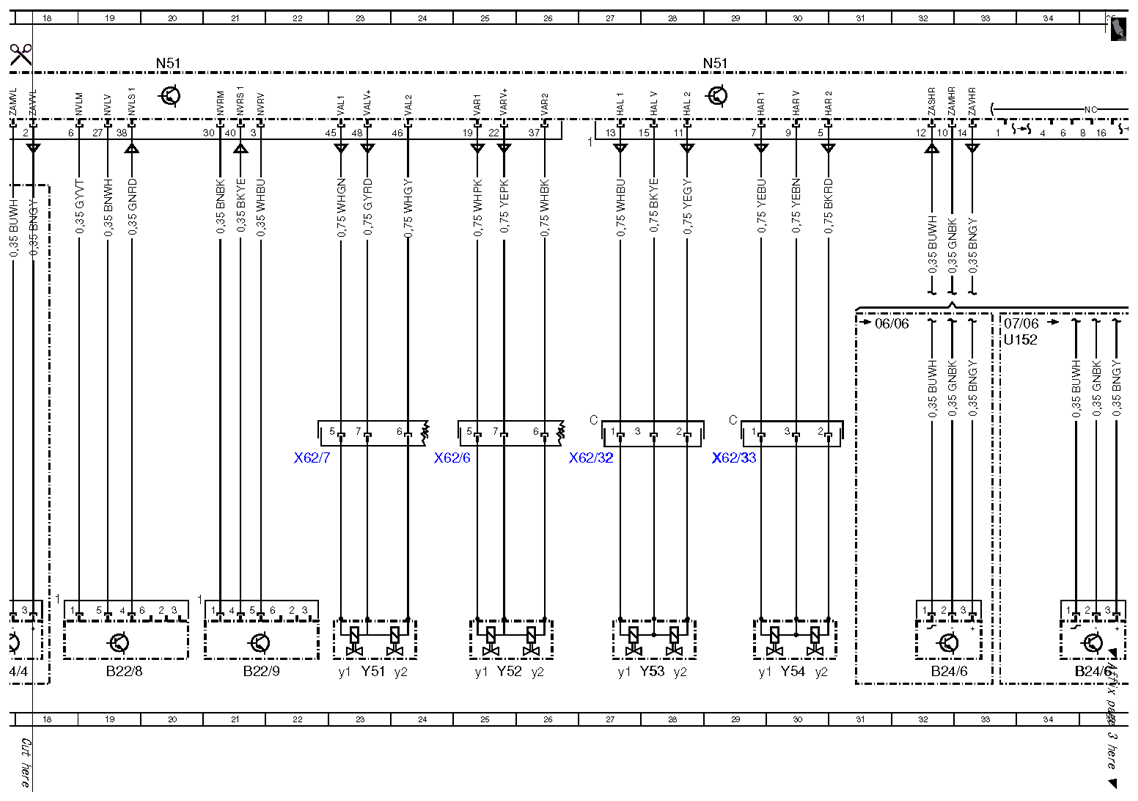

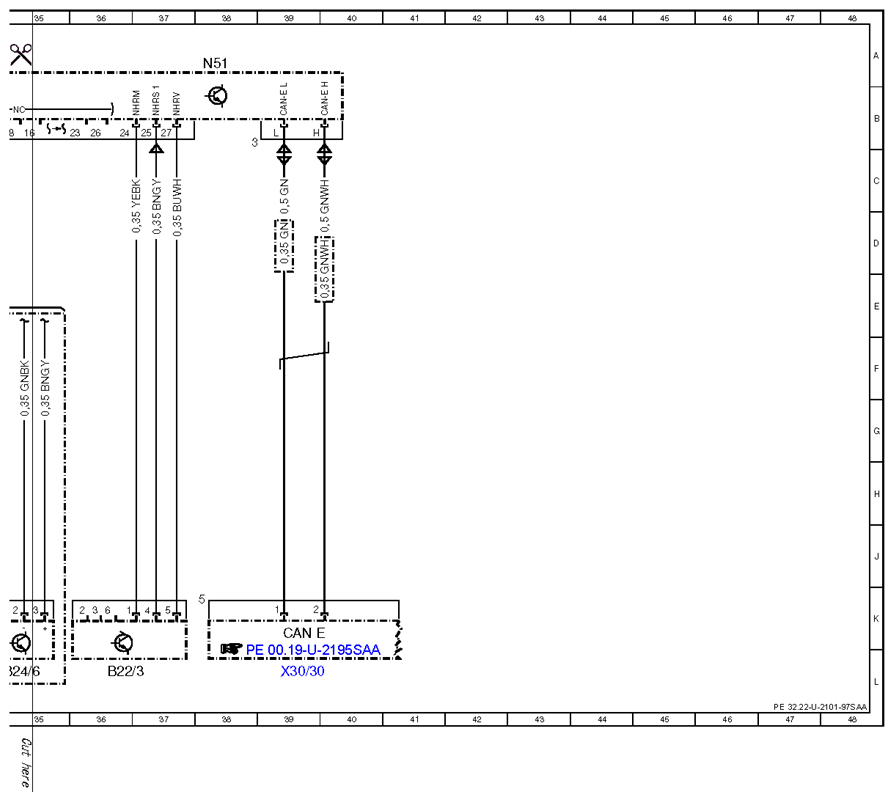

| A9/1 |
AIRMATIC compressor unit |
2L |
| A9/1m1 |
Air compressor motor |
3L |
| A9/1y1 |
AIRMATIC pressure reduction valve |
2L |
| B22/3 |
Rear axle level sensor |
36L |
| B22/8 |
Left front level sensor |
19L |
| B22/9 |
Right front level sensor |
21L |
| B24/3 |
Left front body lateral acceleration sensor |
16L |
| B24/4 |
Right front body lateral acceleration sensor |
17L |
| B24/6 |
Right rear body lateral acceleration sensor |
32L |
| B24/6 |
Right rear body lateral acceleration sensor |
35L |
| CAN E |
Chassis CAN |
39K |
| N10/1 |
Front SAM control unit with fuse and relay module |
5L |
| N51 |
AIRMATIC with ADS control unit |
4A |
| N51 |
AIRMATIC with ADS control unit |
20A |
| N51 |
AIRMATIC with ADS control unit |
29A |
| N51 |
AIRMATIC with ADS control unit |
38A |
| N51 |
AIRMATIC with ADS control unit |
12A |
| U152 |
Valid for engine 156 |
33F |
| W15/1 |
Ground (right footwell) |
4E |
| W2 |
Ground (right front, at lamp unit) |
2H |
| X222 |
AIRMATIC emergency filling connector |
11E |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
39L |
| X62/32 |
Left rear axle multiple circuit junction connector |
27H |
| X62/33 |
Right rear axle multiple circuit junction connector |
29H |
| X62/6 |
Right front axle multiple circuit junction connector, major assembly compartment |
24H |
| X62/7 |
Left front axle multiple circuit junction connector, major assembly compartment |
22H |
| Y36/6 |
Level control valve unit |
11L |
| Y36/6b1 |
AIRMATIC pressure sensor |
14L |
| Y36/6y1 |
Left front level control valve |
9K |
| Y36/6y2 |
Right front level control valve |
9H |
| Y36/6y3 |
Left rear level control valve |
9K |
| Y36/6y4 |
Right rear level valve |
9J |
| Y36/6y5 |
AIRMATIC central reservoir charge valve |
9J |
| Y51 |
Left front axle damping valve unit |
23L |
| Y51y1 |
Solenoid valve 1, front left |
23L |
| Y51y2 |
Solenoid valve 2, front left |
24L |
| Y52 |
Right front axle damping valve unit |
25L |
| Y52y1 |
Solenoid valve 1, front right |
25L |
| Y52y2 |
Solenoid valve 2, front right |
26L |
| Y53 |
Left rear axle damping valve unit |
28L |
| Y53y1 |
Solenoid valve 1, rear left |
27L |
| Y53y2 |
Solenoid valve 2, rear left |
28L |
| Y54 |
Right rear axle damping valve unit |
30L |
| Y54y1 |
Solenoid valve 1, rear right |
29L |
| Y54y2 |
Solenoid valve 2, rear right |
30L |
