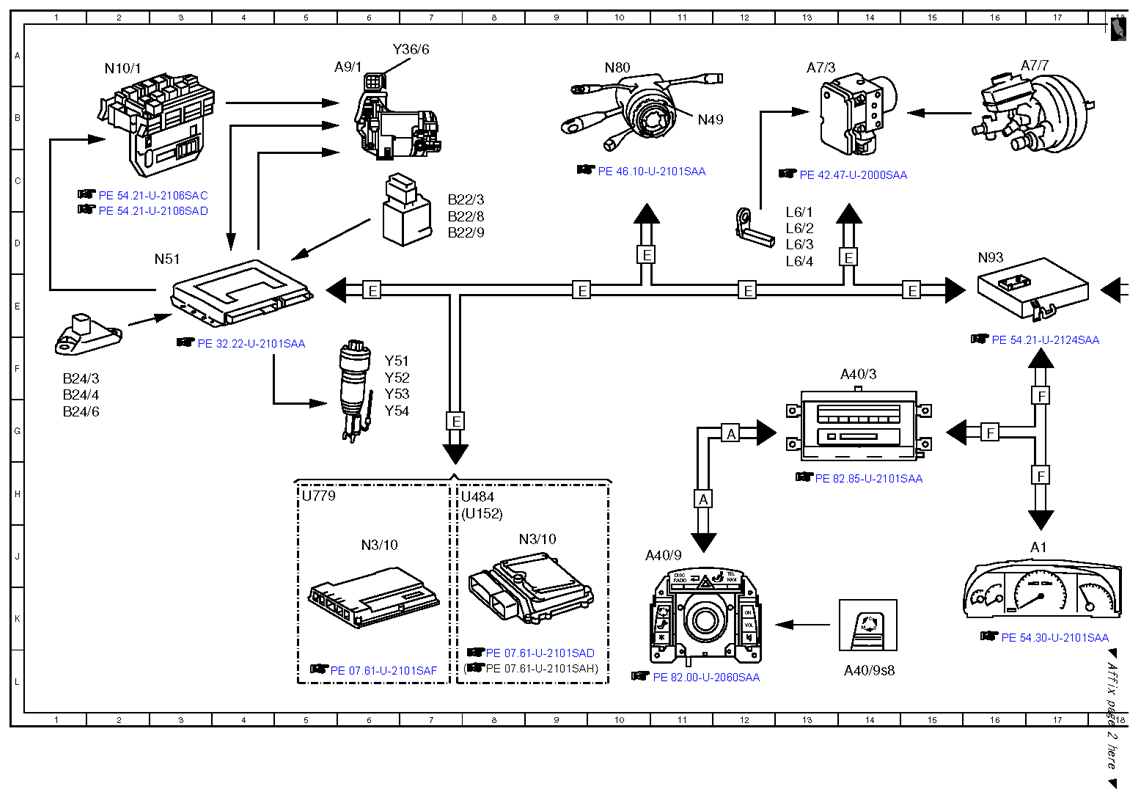

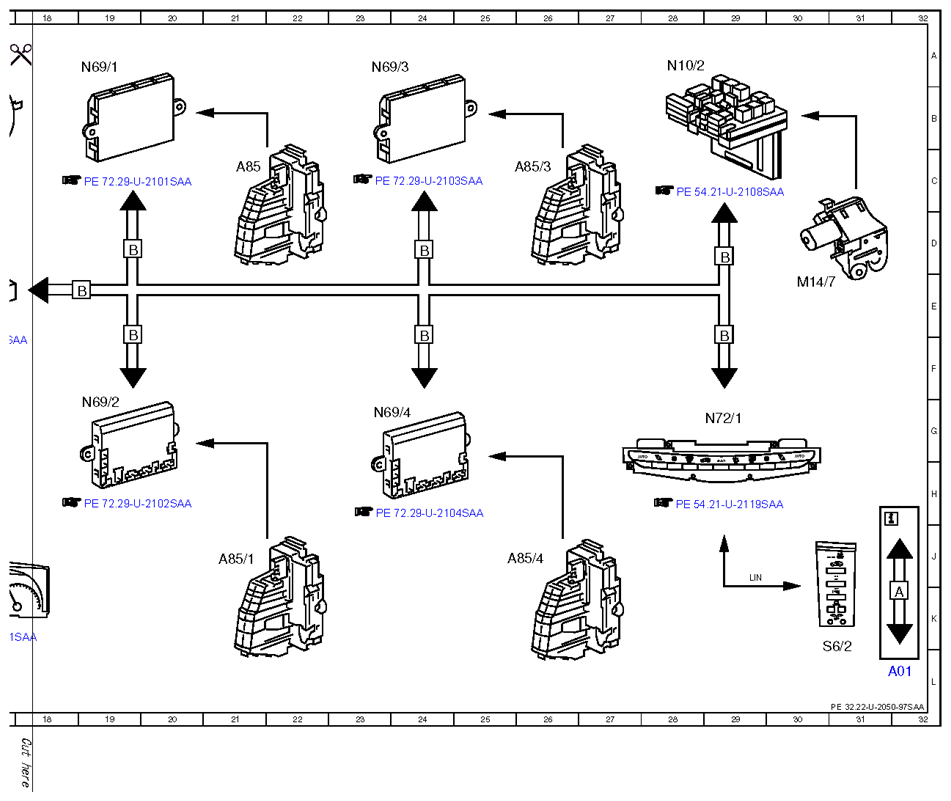

| A01 |
Explanation of CAN and LIN-Bus |
32L |
| A1 |
Instrument cluster |
17J |
| A40/3 |
COMAND control unit |
14F |
| A40/9 |
Front central operating unit |
11J |
| A40/9s8 |
Transmission modes button |
14L |
| A7/3 |
Traction system hydraulic unit |
13A |
| A7/7 |
BAS brake booster |
17A |
| A85 |
Left front door lock unit |
21C |
| A85/1 |
Right front door lock switch |
21J |
| A85/3 |
Left rear door lock unit |
26C |
| A85/4 |
Right rear door lock unit |
26J |
| A9/1 |
AIRMATIC compressor unit |
6A |
| B22/3 |
Rear axle level sensor |
7C |
| B22/8 |
Left front level sensor |
7D |
| B22/9 |
Right front level sensor |
7D |
| B24/3 |
Left front body lateral acceleration sensor |
1F |
| B24/4 |
Right front body lateral acceleration sensor |
1G |
| B24/6 |
Right rear body lateral acceleration sensor |
1G |
| L6/1 |
Left front rpm sensor |
13D |
| L6/2 |
Right front rpm sensor |
13D |
| L6/3 |
Left rear rpm sensor |
13D |
| L6/4 |
right rear rpm sensor |
13D |
| M14/7 |
Trunk lid CL [ZV] motor |
30E |
| N10/1 |
Front SAM control unit with fuse and relay module |
2A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N3/10 |
ME-SFI [ME] control unit |
6J |
| N3/10 |
ME-SFI [ME] control unit |
9J |
| N49 |
Steering angle sensor |
11B |
| N51 |
AIRMATIC with ADS control unit |
3D |
| N69/1 |
Left front door control unit |
19A |
| N69/2 |
Right front door control unit |
19G |
| N69/3 |
Rear left door control unit |
23A |
| N69/4 |
Right rear door control unit |
23G |
| N72/1 |
Upper control panel control unit |
29G |
| N80 |
Steering column module |
10A |
| N93 |
Central gateway control unit |
16D |
| S6/2 |
Cockpit switch group |
31L |
| U152 |
Valid for engine 156 |
7H |
| U484 |
Valid for M273 ME |
7H |
| U484 |
Valid for M273 ME |
- |
| U779 |
Valid for engine 275 |
5H |
| Y36/6 |
Level control valve unit |
7A |
| Y51 |
Left front axle damping valve unit |
6F |
| Y52 |
Right front axle damping valve unit |
6F |
| Y53 |
Left rear axle damping valve unit |
6F |
| Y54 |
Right rear axle damping valve unit |
6G |
