Remove/install oil cooler - AR32.50-P-0020SX
MODEL 216, 221.0/1 with CODE (487) Active Body Control (ABC)
| Remove/install | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid. | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Before opening the hydraulic system, thoroughly clean the area surrounding the separation point. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system | |||
| Notes on Active Body Control suspension | AH32.50-P-0001-01N | ||
| 1 | Remove radiator trim | Model 216 | |

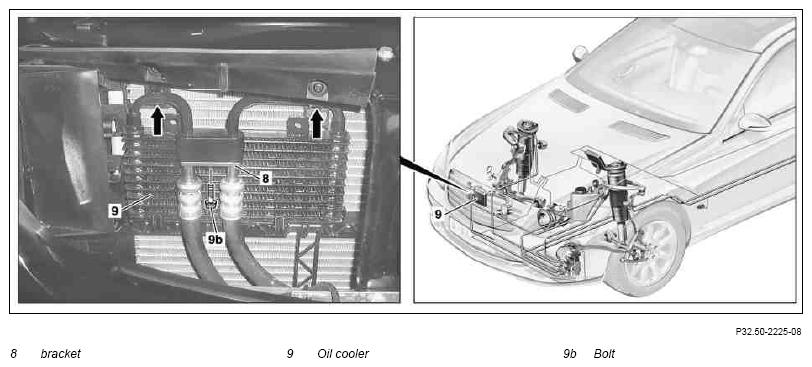

| 2 | Unscrew bolt (9b) and remove clamping pad (8) | ||
| 3 | Pull oil supply line and oil return line out of oil cooler (9) | ||
| Notes on fitting hydraulic lines and hoses | AH32.50-P-0001-02A | ||
| 4 | Unclip and remove oil cooler (9) from brackets (arrows) | ||
| 5 | Install in the reverse order | ||
| 6 | Fill and bleed ABC system | AR32.50-P-0021SX |
