Remove/install steering angle sensor - AR46.10-P-0300I

MODEL 215, 220 with CODE (472) Electronic Stability Program (ESP)

MODEL 230

Illustrated on model 220 (steering column module removed)

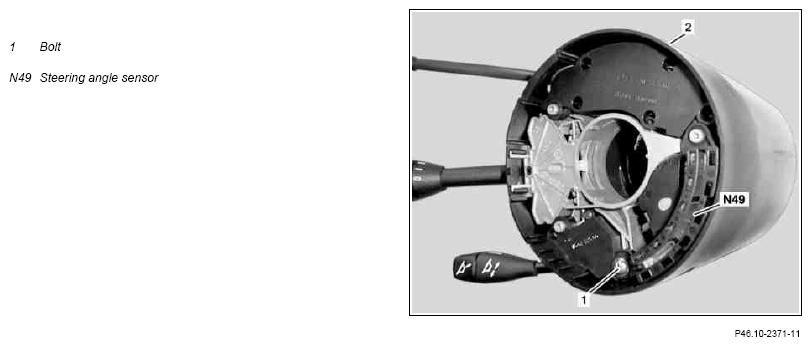

Fig 1: Identifying Steering Angle Sensor Components - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove clock spring contact		AR46.10-P-0200I
2	Unscrew bolt (1)
3	Remove steering angle sensor (N49) from steering column module
4	Install in the reverse order
