Remove/install rear seat belts - AR91.40-P-0681SX
MODEL 221.0/1
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of injury caused by release of spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove paneling on C-pillar | Vehicles without code (Z07) Top protection | AR68.30-P-4490SX |
| Vehicles with code (Z07) Top protection | AR68.30-P-4490SXS | ||
| 2 | Connect ground line to starter battery and to on-board electrical system battery | AR54.10-P-0003SX | |
| 3 | Remove rear shelf | Vehicles without code (Z07) Top protection | AR68.30-P-4580SX |
| Vehicles with code (Z07) Top protection | AR68.30-P-4580SXS | ||

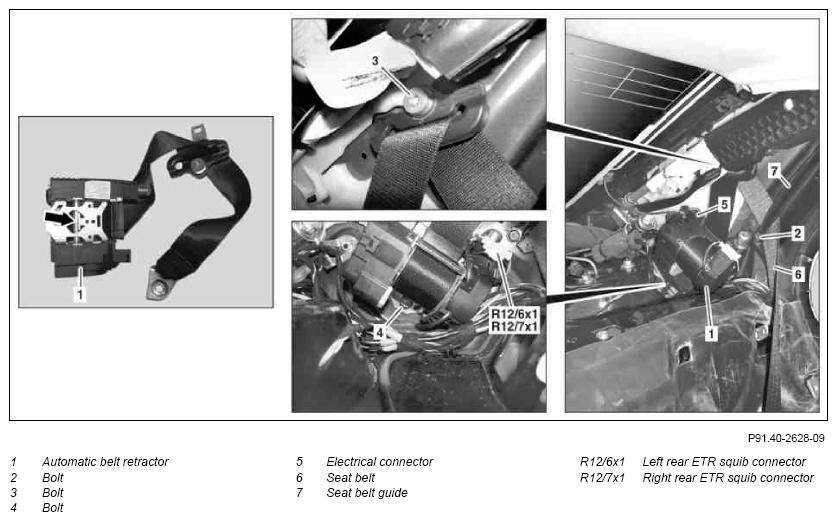

| 4 | Remove bolt (2) from belt guide (7) | *BA91.40-P-1009-01O | |
| 5 | Remove bolt (3) on seat belt guide bracket | *BA91.40-P-1005-01O | |
| 6 | Remove bolt (4) on automatic belt retractor (1) | *BA91.40-P-1006-01O | |
| 7 | Detach electrical connector (5) and left rear ETR squib connector (R12/6x1) or right rear ETR squib connector (R12/7x1) on automatic belt retractor (1) | ||
| 8 | Detach seat belt (6) from belt guide (7) and remove automatic belt retractor (1) | If the automatic belt retractor (1) is replaced, the faulty automatic belt retractor (1) must be disposed of properly. Refer to: ↓ |
|
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 9 | Install in the reverse order | ||
| 10.1 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | After replacing the automatic belt retractor (1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA91.40-P-1005-01O | Screw in rear upper belt guide fitting | Nm | 32 |
| BA91.40-P-1006-01O | Bolt to rear inertia reel | Nm | 32 |
| BA91.40-P-1009-01O | Bolt for automatic belt run control at rear | Nm | 8 |
