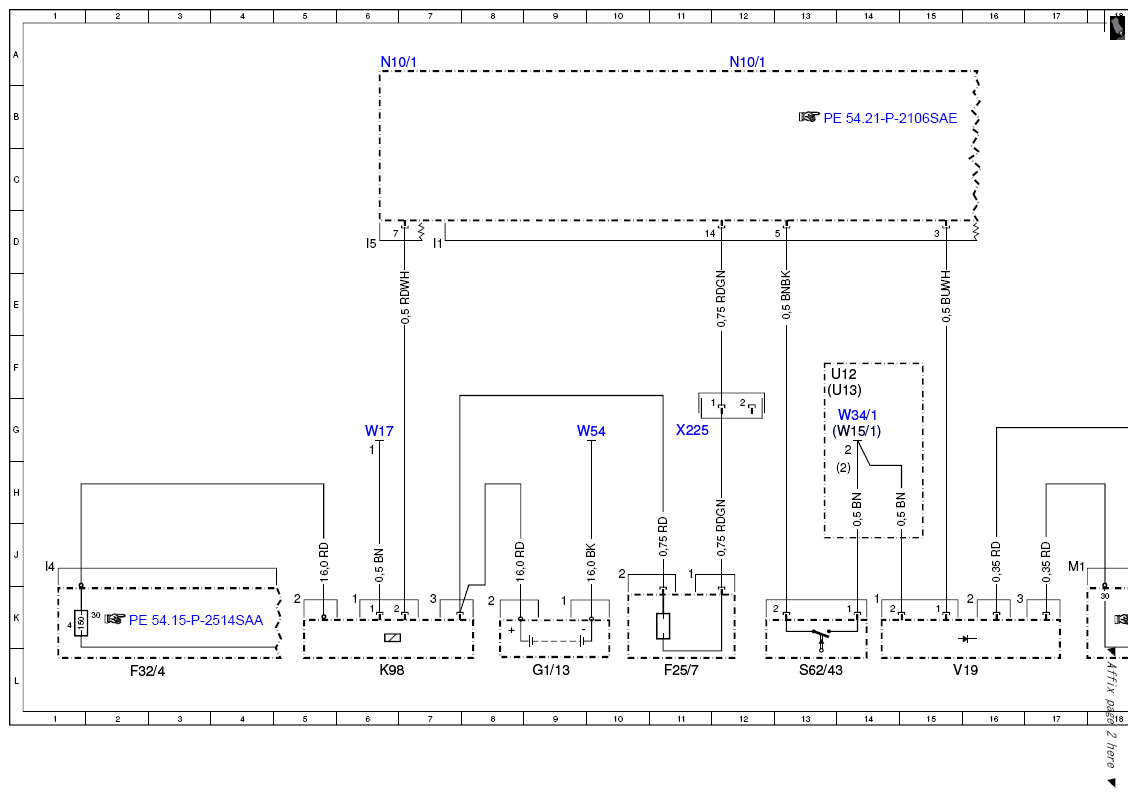

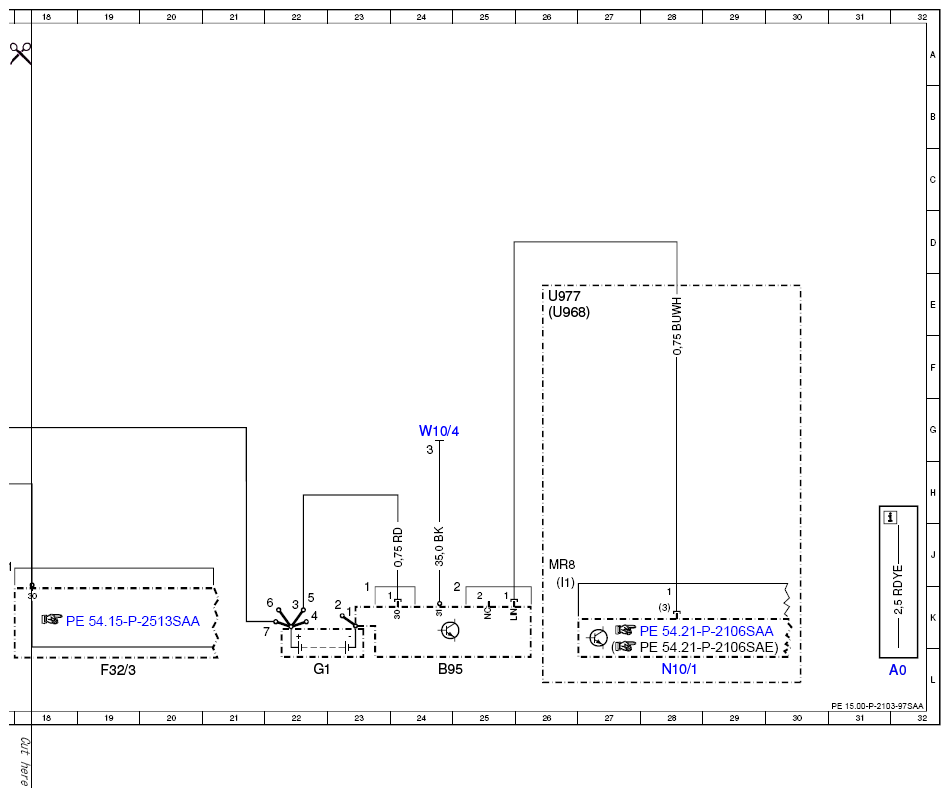

| A0 |
Color code key |
32L |
| B95 |
Battery sensor |
24L |
| F25/7 |
Backup battery fuse |
11L |
| F32/3 |
Engine compartment prefuse box |
19L |
| F32/4 |
Interior prefuse box |
2L |
| F32/4f4 |
Fuse 4 |
1K |
| G1 |
On-board electrical system battery |
22L |
| G1/13 |
ECO start/stop function additional battery |
9L |
| K98 |
ECO start/stop function relay |
6L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
6A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28L |
| S62/43 |
Left engine hood contact switch |
13L |
| U12 |
Valid for left-hand drive vehicles |
13F |
| U13 |
Valid for right-hand drive vehicles |
13F |
| U968 |
Valid for mild hybrid drive |
26E |
| U977 |
Not valid for mild hybrid drive |
26E |
| V19 |
ECO start/stop function diode |
15L |
| W10/4 |
Ground (2nd battery) |
24G |
| W15/1 |
Ground (right footwell) |
14G |
| W17 |
Ground (right rear seat) |
6G |
| W34/1 |
Ground (electronics - left footwell) |
14G |
| W54 |
Ground (right rear wheelhouse) |
9G |
| X225 |
ECO start/stop function additional battery electrical connector |
11G |
