Remove/install fan shroud - AR20.40-P-6800SZ

ENGINE 275 (except 275.982) in MODEL 216, 221

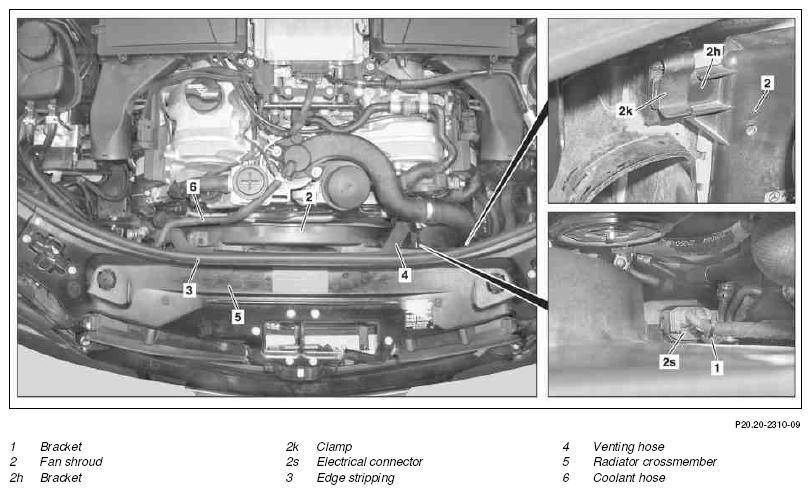

Fig 1: Identifying Fan Shroud Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

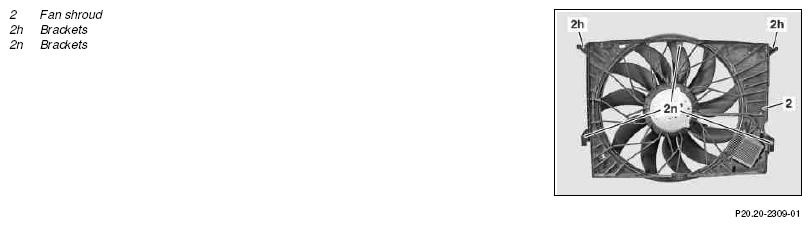

Fig 2: Identifying Fan Shroud Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front engine cover	Engine 275.95	AR01.10-P-2405LA
		Engine 275.98	AR01.10-P-2405IM
2	Remove engine intake air duct
3	Unclip bracket (1)
4	Disconnect electrical connector (2s) on electrical suction fan
5	Unclip coolant hose (6) on upper right on radiator from bracket
6	Detach edge stripping (3) in area of the radiator crossmember (5)
7	Detach clamps (2k) on the left and right from fan shroud (2) brackets (2h)
8	Pull our ventilation hose (4) between fan shroud (2) and radiator crossmember (5)
9	Remove front and center section of engine compartment paneling	Vehicles without code (Z07) Top protection	AR61.20-P-1105SX
		Vehicles with code (Z07) Top protection	AR61.20-P-1105SXS
10	Unhook fan shroud (2) out of radiator	Lift fan shroud (2) until brackets (2n) have moved out of the radiator mounts. Check for correct seating of fan shroud (2) brackets (2n) in the radiator mounts.
11	Remove fan shroud (2) downwards
12	Install in the reverse order
