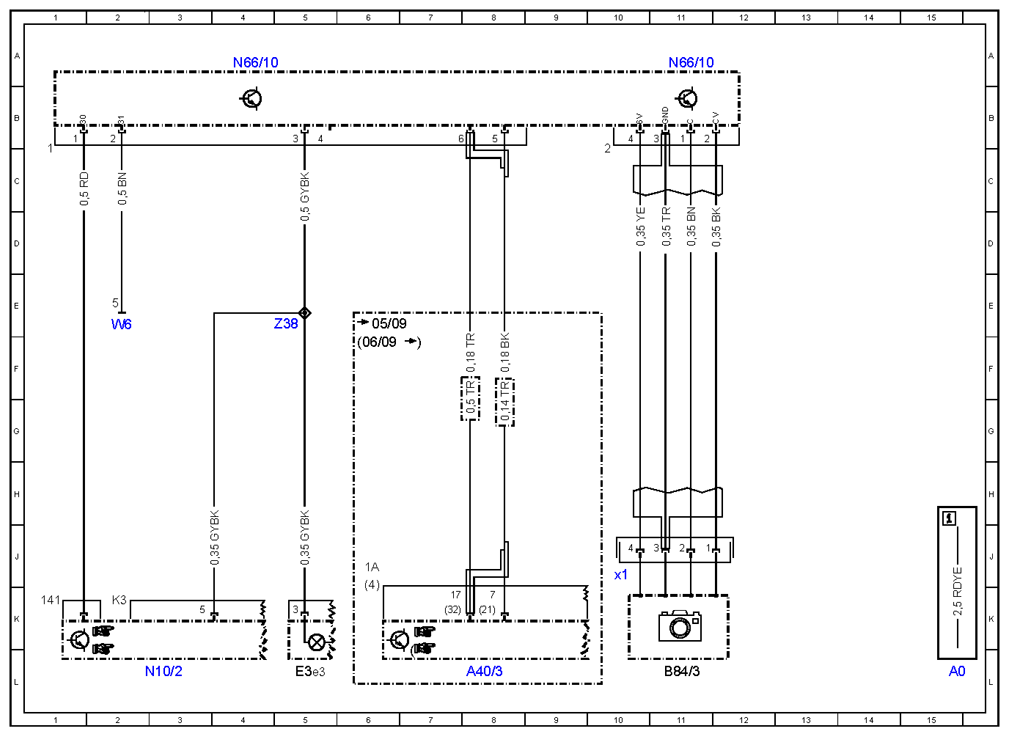

Wiring diagram for backup camera control unit - PE54.65-P-2102-97SAB
MODEL 221.0 /1 with CODE (218) Backup camera except CODE (498) Japan version /AEJ10, control unit N66/10
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/3 | COMAND control unit | 8L |
| B84/3 | Backup camera | 11L |
| B84/3x1 | Backup camera connector | 10J |
| E3 | Left taillamp | 5L |
| E3e3 | Left backup lamp | 5L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N66/10 | Backup camera voltage supply module | 4A |
| N66/10 | Backup camera voltage supply module | 11A |
| W6 | Ground (left wheelhouse in luggage compartment) | 2E |
| Z38 | Backup lamp connector sleeve | 5E |
