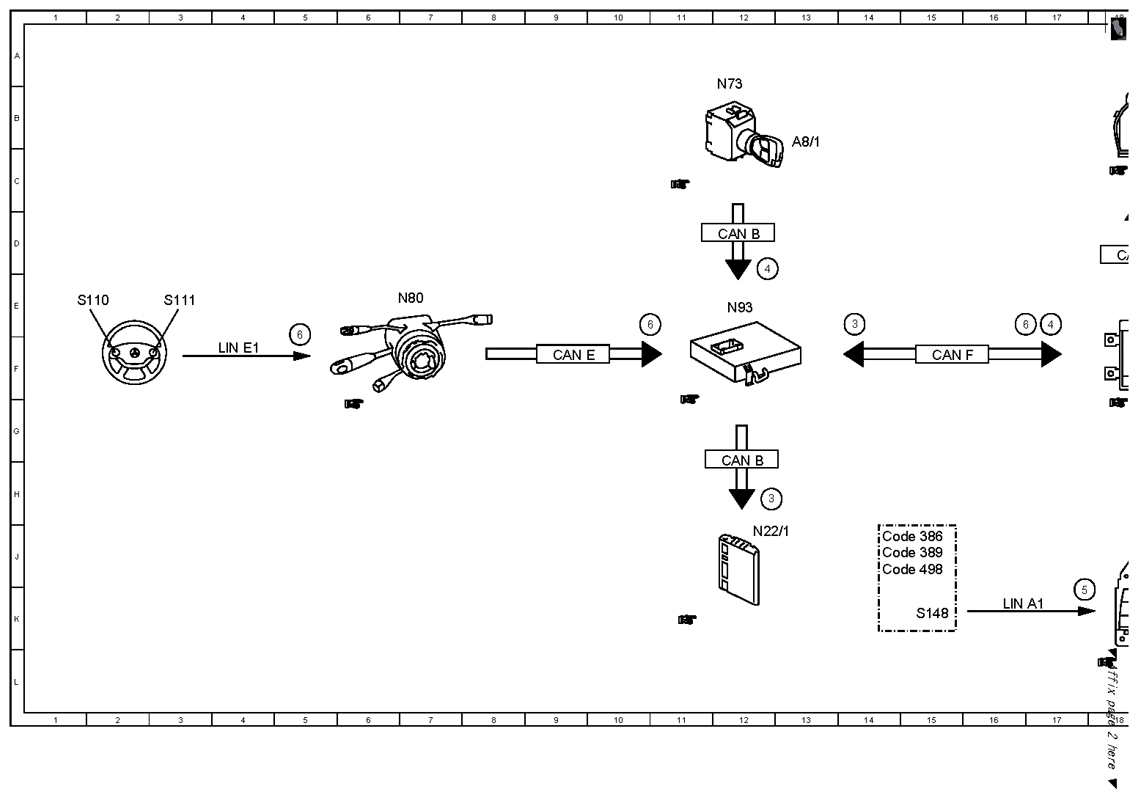

| 1 |
Audio/COMAND display, signal |
20D |
| 2 |
Switch-on request, signal |
19D |
| 3 |
Front central operating unit, signal |
19G |
| 3 |
Front central operating unit, signal |
14E |
| 3 |
Front central operating unit, signal |
12H |
| 4 |
Circuit 15, status ON |
12D |
| 4 |
Circuit 15, status ON |
17E |
| 5 |
Center console button group, signal |
17K |
| 6 |
Multifunction steering wheel button group, signal |
10E |
| 6 |
Multifunction steering wheel button group, signal |
5F |
| 6 |
Multifunction steering wheel button group, signal |
16E |
| A40/3 |
COMAND control unit |
19E |
| A40/8 |
COMAND display |
19B |
| A40/9 |
Front central operating unit |
19J |
| A40/9s6 |
Button "ON" |
19J |
| A8/1 |
Transmitter key |
13B |
| CAN A |
Telematics CAN |
19H |
| CAN A |
Telematics CAN |
18D |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
12H |
| CAN E |
Chassis CAN |
9F |
| CAN F |
Central CAN |
15F |
| Code 386 |
Mobile phone preinstallation with universal interface |
14J |
| Code 389 |
Mobile phone preinstallation with universal interface, USA/Canada |
14J |
| Code 498 |
Japan version |
14J |
| LIN A1 |
COU [ZBE] LIN |
16K |
| LIN E1 |
Steering LIN |
4F |
| LVDS |
Low voltage differential signal |
20D |
| N22/1 |
AAC [KLA] control unit |
12J |
| N73 |
EIS [EZS] control unit |
12B |
| N80 |
Steering column module |
7E |
| N93 |
Central gateway control unit |
12E |
| S110 |
Left multifunction steering wheel button group |
1E |
| S111 |
Right multifunction steering wheel button group |
3E |
| S148 |
Center console button group |
15K |
