Electrical function schematic for adjusting cockpit central display, function - PE54.30-U-2063-97SAA

Code: Designation: Position:
1 Audio/COMAND display, signal 21C
2 Switch-on request, signal 20C
3 Front central operating unit, signal 21G
4 Circuit 15R/circuit 15, status ON 18F
4 Circuit 15R/circuit 15, status ON 14E
5 Cockpit switch group, signal 5F
5 Cockpit switch group, signal 17F
5 Cockpit switch group, signal 20D
5 Cockpit switch group, signal 12F
A40/3 COMAND control unit 20E
A40/8 COMAND display 20A
A40/9 Front central operating unit 20J
A8/1 Transmitter key 14C
CAN A Telematics CAN 19D
CAN A Telematics CAN 20H
CAN B Interior CAN 10F
CAN B Interior CAN 13D
CAN F Central CAN 16F
LIN 1 Instrument panel LIN 4F
LVDS Low voltage differential signal 21D
N72/1 Upper control panel control unit 7F
N73 EIS [EZS] control unit 13B
N93 Central gateway control unit 13F
S6/2 Cockpit switch group 3E
S6/2r2 COMAND display brightness control 2G
S6/2s13 COMAND display swivel left switch 2G
S6/2s14 COMAND display swivel right switch 2H

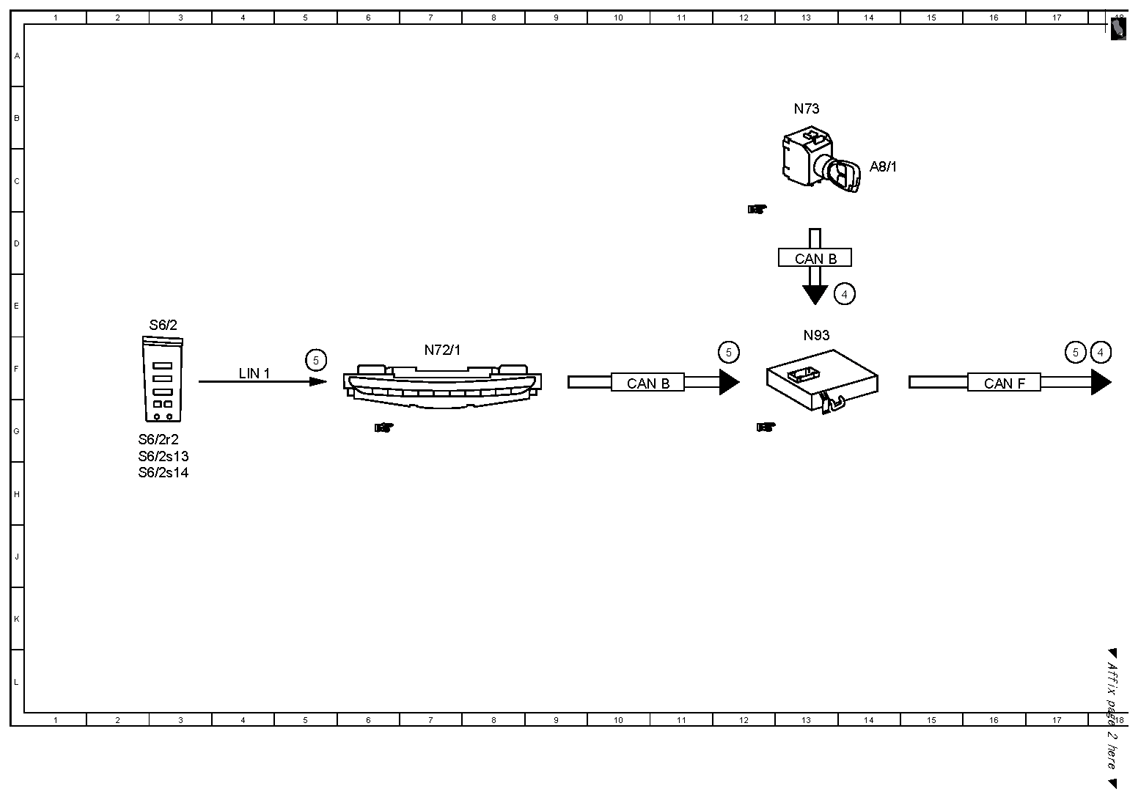

Fig 1: Adjusting Cockpit Central Display - Electrical Function Schematic (1 Of 2)
G10128016Courtesy of MERCEDES-BENZ USA

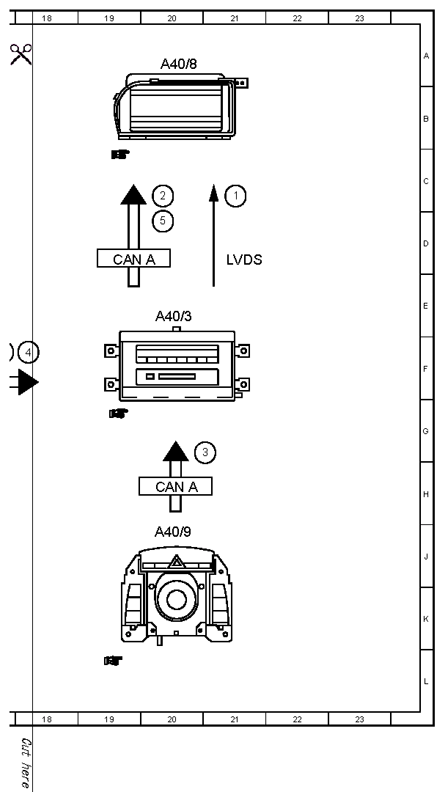

Fig 2: Adjusting Cockpit Central Display - Electrical Function Schematic (2 Of 2)
G10128017Courtesy of MERCEDES-BENZ USA
