| A0 |
Color code key |
48L |
| A2/12 |
Rear window antenna amplifier module |
38L |
| A26/13 |
Ultrasonic echo sounder sensor |
35L |
| CAN B |
Interior CAN |
42K |
| E21 |
Center high-mounted stop lamp |
32K |
| F1/6 |
Right instrument panel fuse box |
21L |
| F1/6f79 |
Fuse 79 |
20K |
| F32/4 |
Interior prefuse box |
3L |

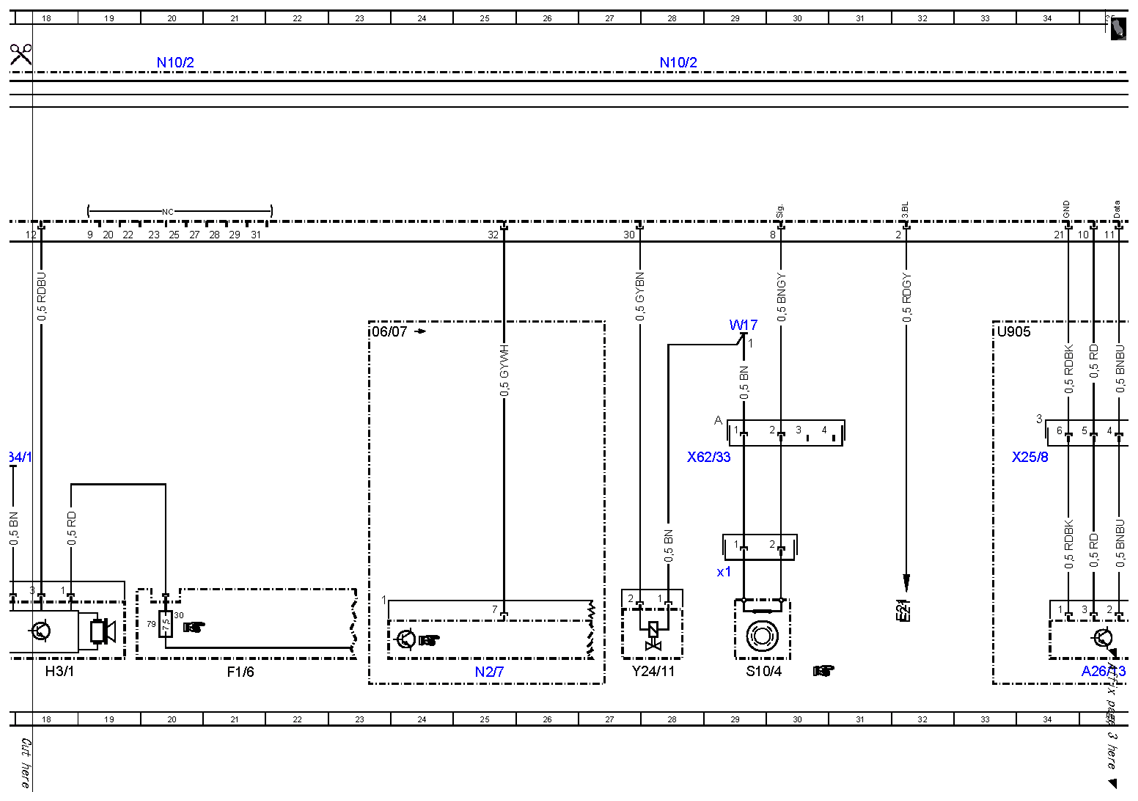

| H3/1 |
Alarm signal siren |
18L |

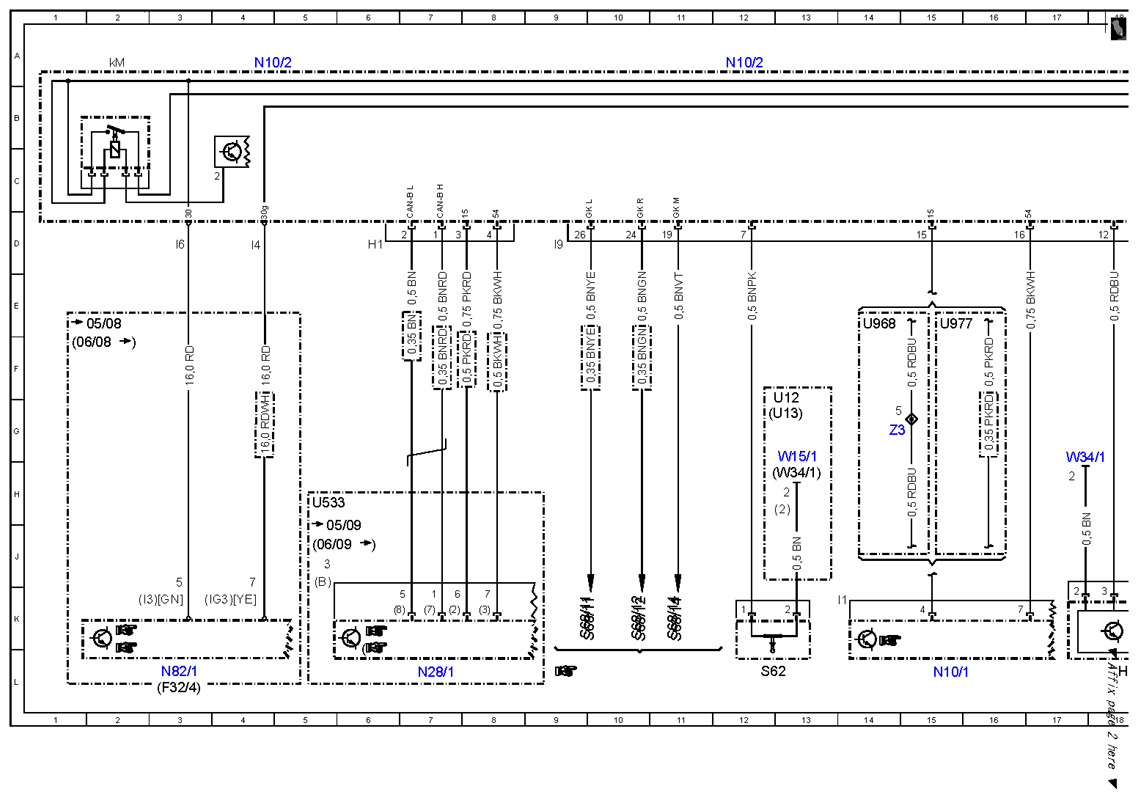

| N10/1 |
Front SAM control unit with fuse and relay module |
15L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
42A |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
2A |
| N2/7 |
Restraint systems control unit |
25L |
| N28/1 |
Trailer recognition control unit |
7L |
| N82/1 |
Vehicle power supply control unit |
3L |
| S10/4 |
Right rear brake pad contact sensor |
29L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
29J |
| S62 |
ATA [EDW] hood switch |
12L |
| S68/11 |
Left rear seat belt buckle switch |
9K |
| S68/12 |
Right rear seat belt buckle switch |
10K |
| S68/14 |
Center rear seat belt buckle switch |
11K |
| U12 |
Valid for left-hand drive vehicles |
12G |
| U13 |
Valid for right-hand drive vehicles |
12G |
| U533 |
Valid for trailer hitch |
5H |
| U905 |
Valid for interior protection |
33E |
| U968 |
Valid for mild hybrid drive |
14E |
| U977 |
Not valid for mild hybrid drive |
15E |
| W15/1 |
Ground (right footwell) |
13G |
| W17 |
Ground (right rear seat) |
29E |
| W34/1 |
Ground (electronics - left footwell) |
17H |
| W34/1 |
Ground (electronics - left footwell) |
13H |

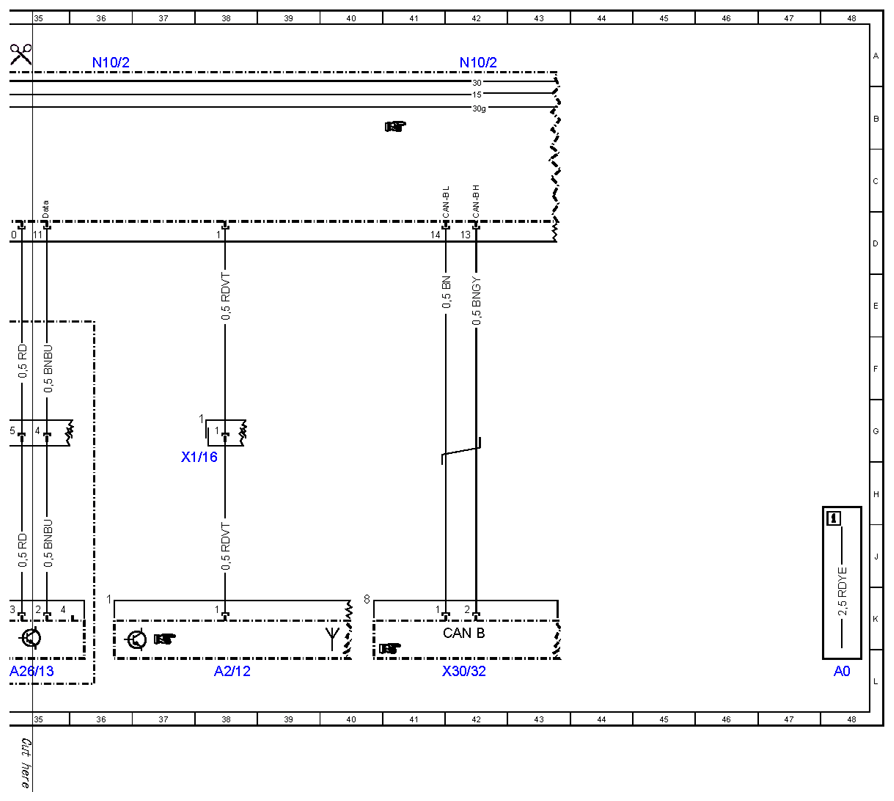

| X1/16 |
Roof antenna connector |
38H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
34H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
42L |
| X62/33 |
Right rear axle multiple circuit junction connector |
29G |
| Y24/11 |
Rear head restraints valve block |
28L |
| Z3 |
Tml. 15 connector sleeve |
14G |
