| CAN A |
Telematics CAN |
7K |
| F1/7 |
Left instrument panel fuse box |
3L |
| F1/7f111 |
Fuse 111 |
1K |

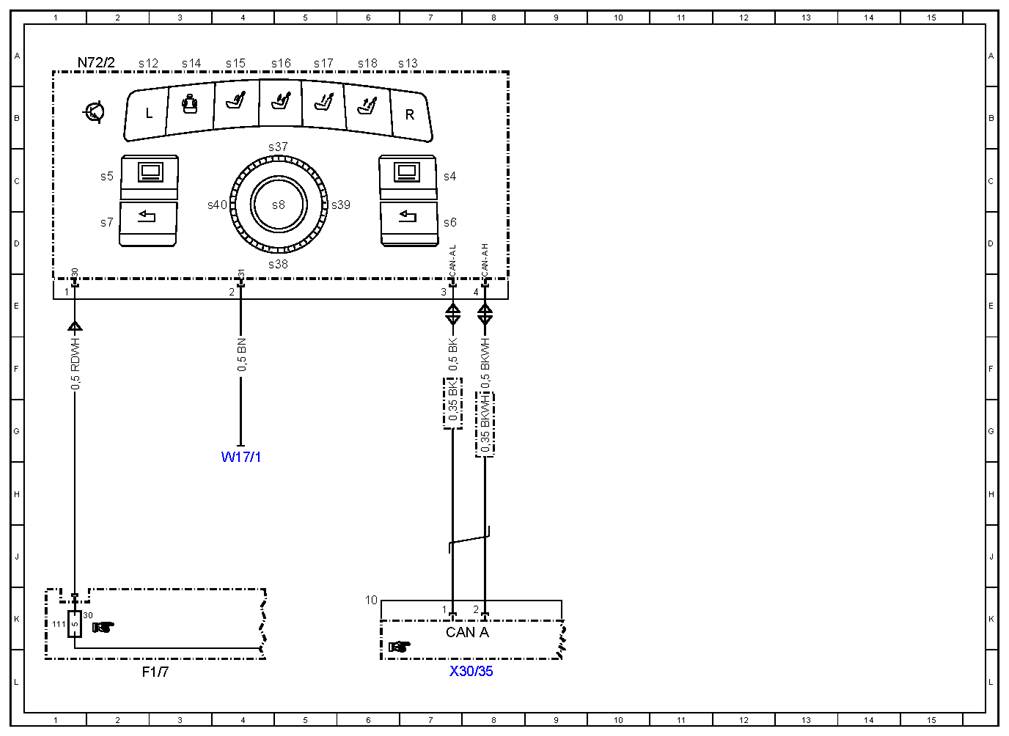

| N72/2 |
RCP [HBF] control unit |
2A |
| N72/2s12 |
Left seat selection button |
2A |
| N72/2s13 |
Right seat selection button |
7A |
| N72/2s14 |
Backrest side seat contour button |
3A |
| N72/2s15 |
Lumbar support seat contour button |
4A |
| N72/2s16 |
Lumbar support height adjustment button |
5A |
| N72/2s17 |
Gentle massage function button |
5A |
| N72/2s18 |
Firm massage function button |
6A |
| N72/2s37 |
"Forward" button |
4C |
| N72/2s38 |
Button "Back" |
4D |
| N72/2s39 |
Increase volume button |
5C |
| N72/2s4 |
Right screen button |
7C |
| N72/2s40 |
Reduce volume button |
4C |
| N72/2s5 |
Left screen button |
2C |
| N72/2s6 |
Right "Back" button |
7D |
| N72/2s7 |
Left "Back" button |
2D |
| N72/2s8 |
Rear turn/push control |
5C |
| W17/1 |
Ground (left rear seat) |
4H |
| X30/35 |
Telematics CAN voltage distributor connector |
7L |
