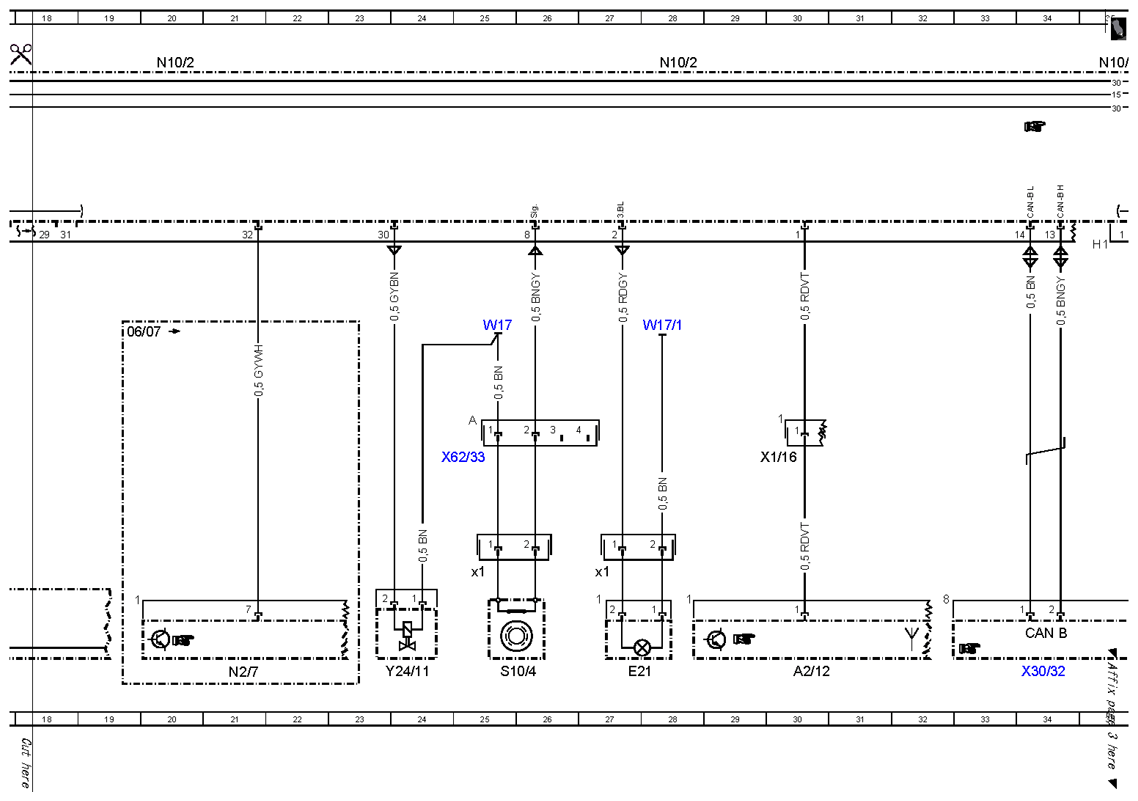

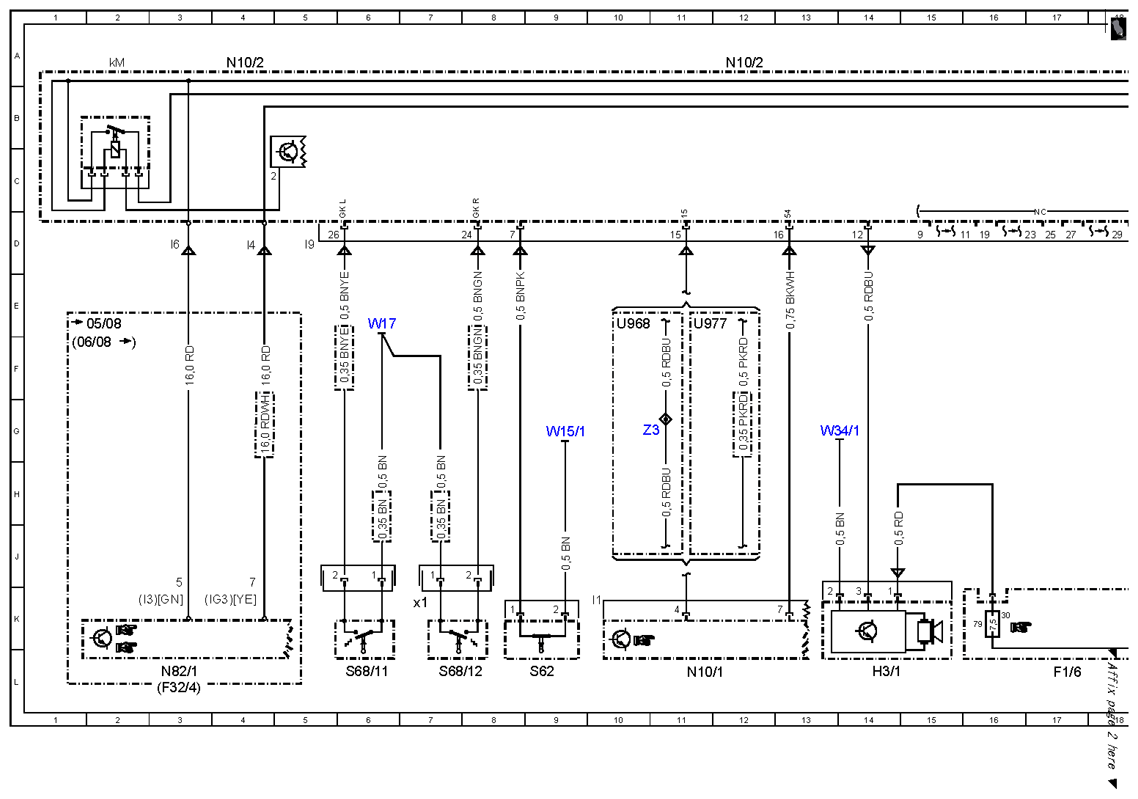

| A2/12 |
Rear window antenna amplifier module |
30L |
| CAN B |
Interior CAN |
34K |
| E21 |
Center high-mounted stop lamp |
27L |
| E21x1 |
Center high-mounted stop lamp connector |
27J |
| F1/6 |
Right instrument panel fuse box |
17L |
| F1/6f79 |
Fuse 79 |
16K |
| F32/4 |
Interior prefuse box |
3L |
| H3/1 |
Alarm signal siren |
14L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
35A |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
2A |
| N2/7 |
Restraint systems control unit |
21L |
| N82/1 |
Vehicle power supply control unit |
3L |
| S10/4 |
Right rear brake pad contact sensor |
25L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
25J |
| S62 |
ATA [EDW] hood switch |
9L |
| S68/11 |
Left rear seat belt buckle switch |
6L |
| S68/12 |
Right rear seat belt buckle switch |
7L |
| S68/12x1 |
Right rear seat belt buckle switch connector |
7J |
| U968 |
Valid for mild hybrid drive |
10E |
| U977 |
Not valid for mild hybrid drive |
11E |
| W15/1 |
Ground (right footwell) |
9G |
| W17 |
Ground (right rear seat) |
25E |
| W17 |
Ground (right rear seat) |
6E |
| W17/1 |
Ground (left rear seat) |
28E |
| W34/1 |
Ground (electronics - left footwell) |
13G |
| X1/16 |
Roof antenna connector |
30H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
34L |
| X62/33 |
Right rear axle multiple circuit junction connector |
25G |
| Y24/11 |
Rear head restraints valve block |
24L |
| Z3 |
Tml. 15 connector sleeve |
11G |
