| F32 |
Front prefuse |
4A |
| F32 |
Front prefuse |
12A |
| F32 |
Front prefuse |
20A |
| F32 |
Front prefuse |
28A |
| F32 |
Front prefuse |
36A |
| F32f1 |
Fuse 1 |
6B |
| F32f10 |
Fuse 10 |
30C |
| F32f2 |
Fuse 2 |
8B |
| F32f3 |
Fuse 3 |
32C |
| F32f4 |
Fuse 4 |
33C |
| F32f5 |
Fuse 5 |
34C |
| F32f6 |
Fuse 6 |
26B |
| F32f7 |
Fuse 7 |
35C |
| F32f8 |
Fuse 8 |
36C |
| F32f9 |
Fuse 9 |
28C |
| F32k1 |
Battery coupling relay |
2A |

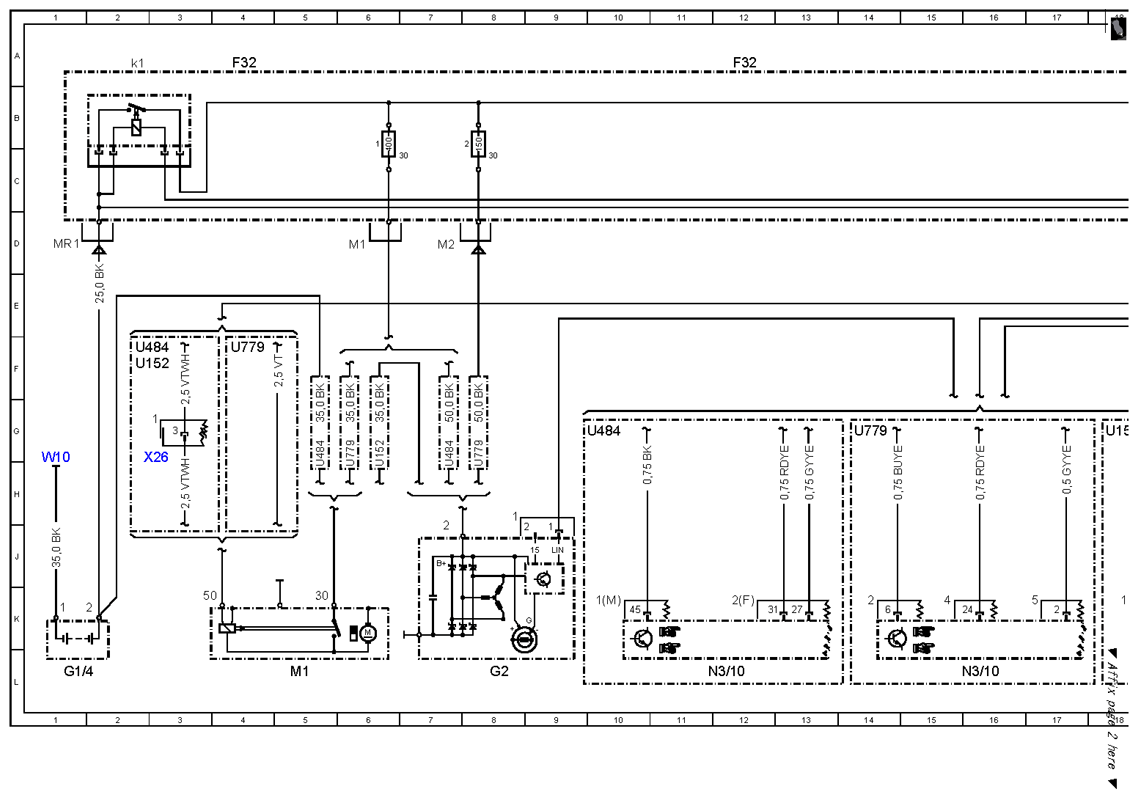

| G1/4 |
Starter battery |
1L |
| G2 |
Alternator |
8L |
| M1 |
Starter |
5L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
34L |

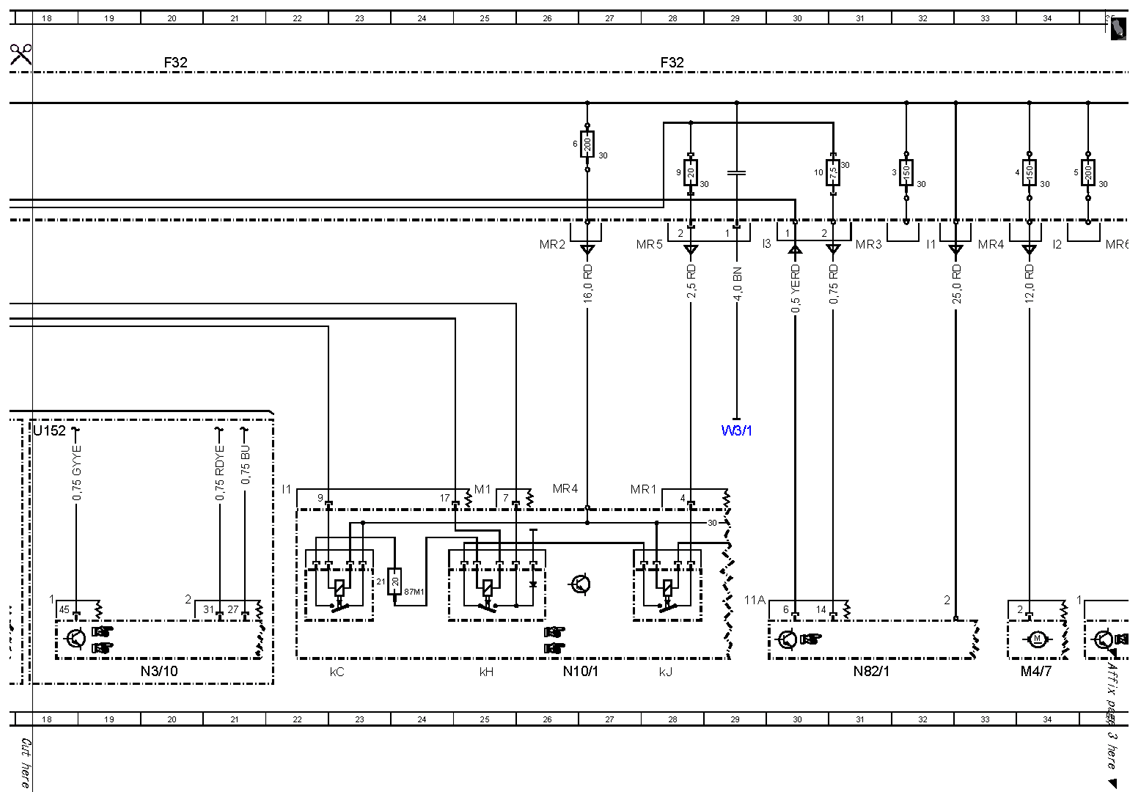

| N10/1 |
Front SAM control unit with fuse and relay module |
26L |
| N10/1f21 |
Fuse 21 |
23J |
| N10/1kC |
Circuit 87 relay, engine |
23L |
| N10/1kH |
Circuit 50 relay, starter |
25L |
| N10/1kJ |
Circuit 15 relay, starter |
28L |
| N3/10 |
ME-SFI [ME] control unit |
12L |
| N3/10 |
ME-SFI [ME] control unit |
16L |
| N3/10 |
ME-SFI [ME] control unit |
20L |

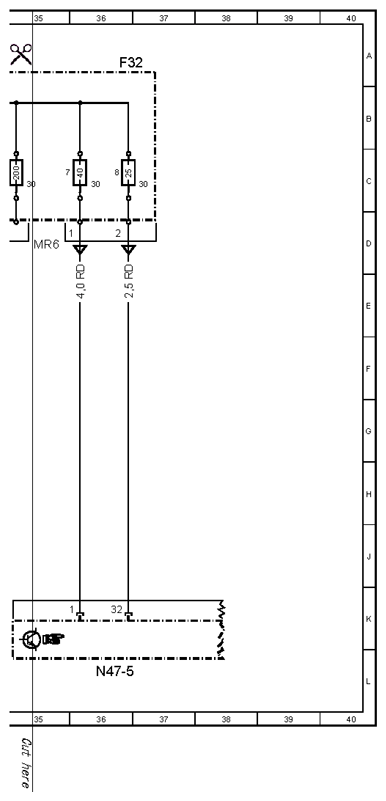

| N47-5 |
ESP control unit |
36L |
| N82/1 |
Vehicle power supply control unit |
31L |
| U152 |
Valid for engine 156 |
6H |
| U152 |
Valid for engine 156 |
18G |
| U152 |
Valid for engine 156 |
2F |
| U484 |
Valid for M273 ME |
5H |
| U484 |
Valid for M273 ME |
7H |
| U484 |
Valid for M273 ME |
9G |
| U484 |
Valid for M273 ME |
2F |
| U779 |
Valid for engine 275 |
6H |
| U779 |
Valid for engine 275 |
8H |
| U779 |
Valid for engine 275 |
14G |
| U779 |
Valid for engine 275 |
4F |
| W10 |
Ground (battery) |
1H |
| W3/1 |
Ground (right front wheelhouse) |
29G |
| X26 |
Interior and engine wiring harness connector |
3H |
