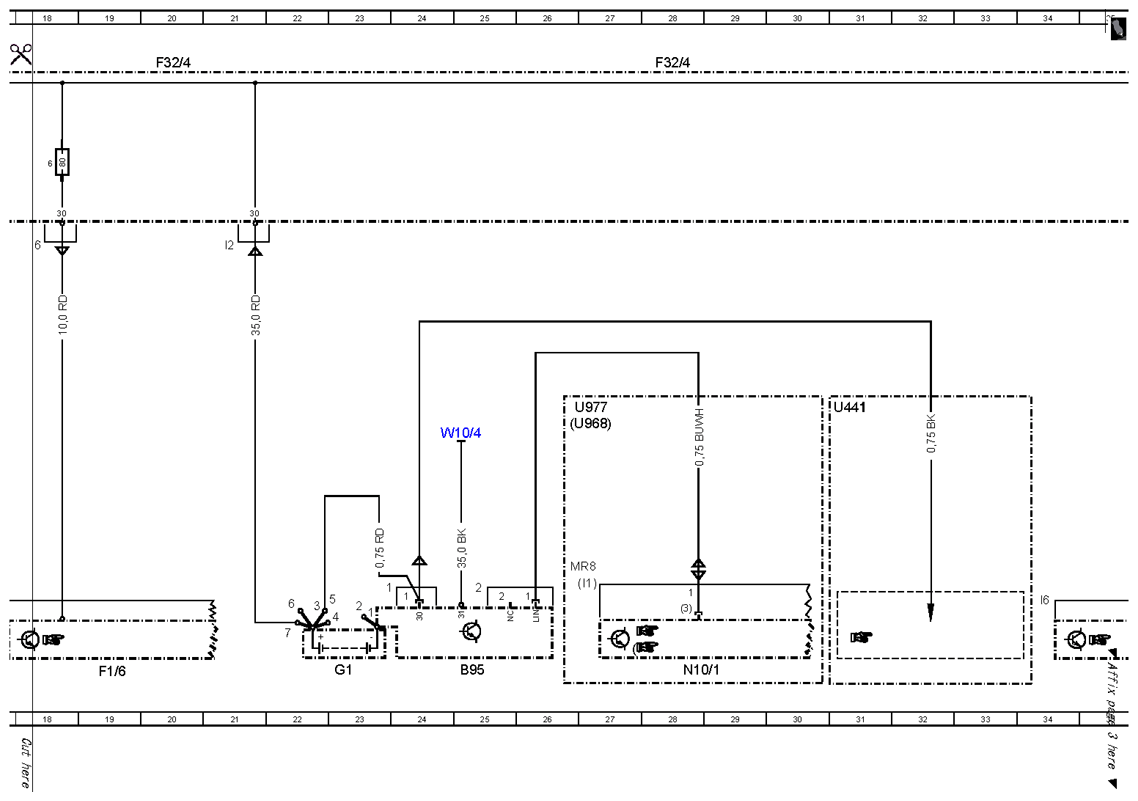

| B95 |
Battery sensor |
25L |
| F1/6 |
Right instrument panel fuse box |
19L |

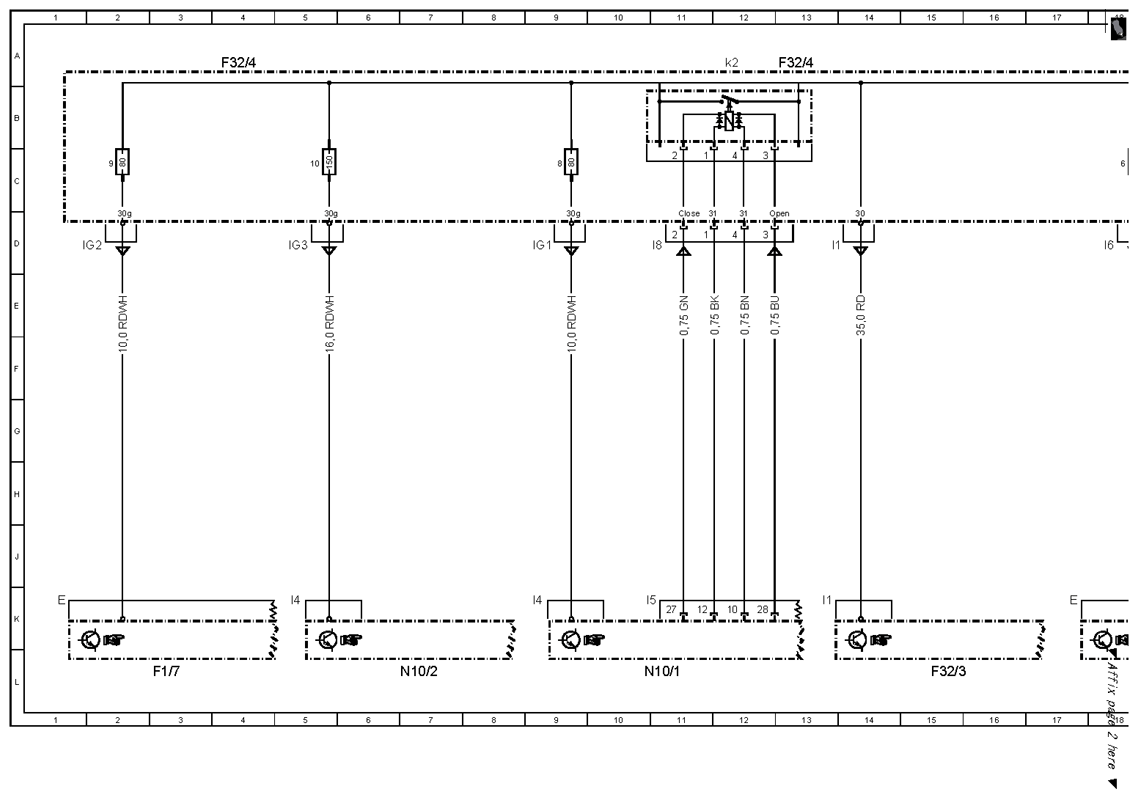

| F1/7 |
Left instrument panel fuse box |
3L |
| F16 |
Special protection vehicle additional fuse holder |
51L |
| F32/3 |
Engine compartment prefuse box |
15L |
| F32/4 |
Interior prefuse box |
4A |
| F32/4 |
Interior prefuse box |
13A |
| F32/4 |
Interior prefuse box |
20A |
| F32/4 |
Interior prefuse box |
28A |
| F32/4 |
Interior prefuse box |
37A |
| F32/4 |
Interior prefuse box |
50A |
| F32/4 |
Interior prefuse box |
44A |
| F32/4f10 |
Fuse 10 |
5C |
| F32/4f3 |
Fuse 3 |
36C |
| F32/4f4 |
Fuse 4 |
40C |
| F32/4f5 |
Fuse 5 |
51C |
| F32/4f6 |
Fuse 6 |
18C |
| F32/4f7 |
Fuse 7 |
37C |
| F32/4f8 |
Fuse 8 |
9C |
| F32/4f9 |
Fuse 9 |
2C |
| F32/4k2 |
Quiescent current cutout relay |
12A |
| G1 |
On-board electrical system battery |
23L |
| K109 |
Vacuum pump relay (+) |
47L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36L |

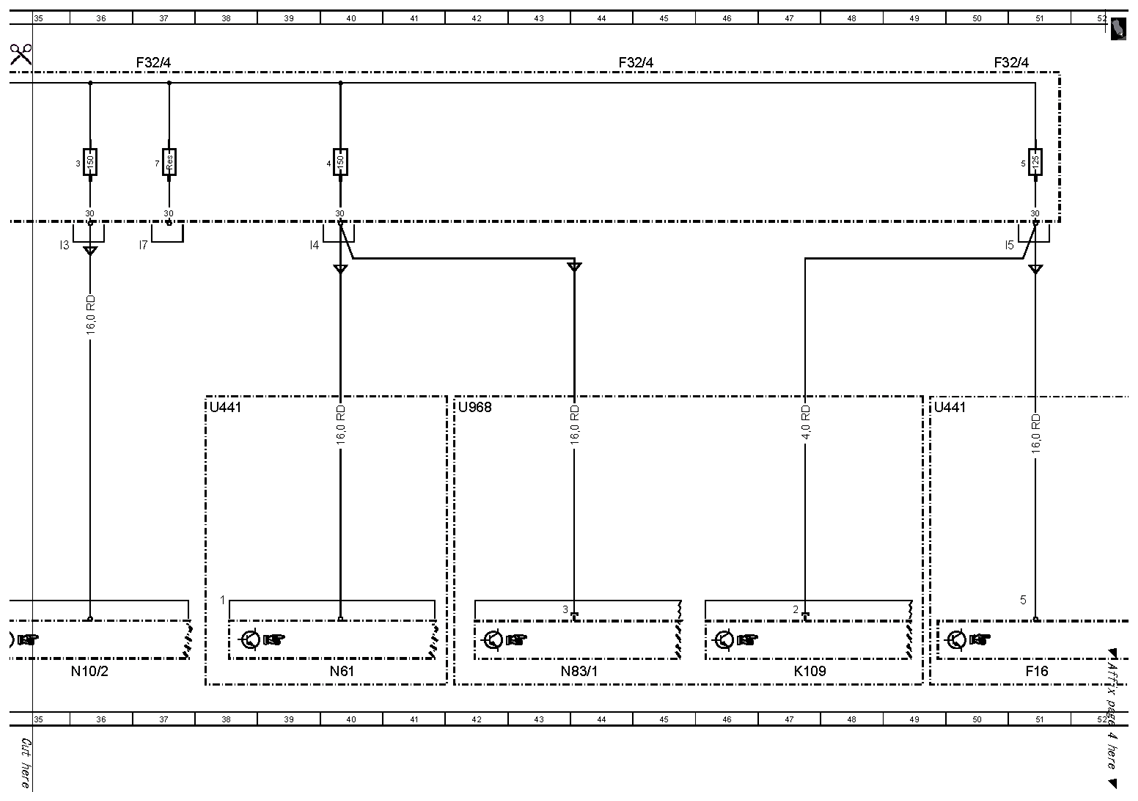

| N61 |
Heated windshield control unit |
40L |
| N83/1 |
DC/DC converter control unit |
43L |
| U441 |
Valid for special protection |
38G |
| U441 |
Valid for special protection |
31G |
| U441 |
Valid for special protection |
49G |
| U968 |
Valid for mild hybrid drive |
42G |
| U968 |
Valid for mild hybrid drive |
26G |
| U977 |
Not valid for mild hybrid drive |
26G |
| W10/4 |
Ground (2nd battery) |
24G |
