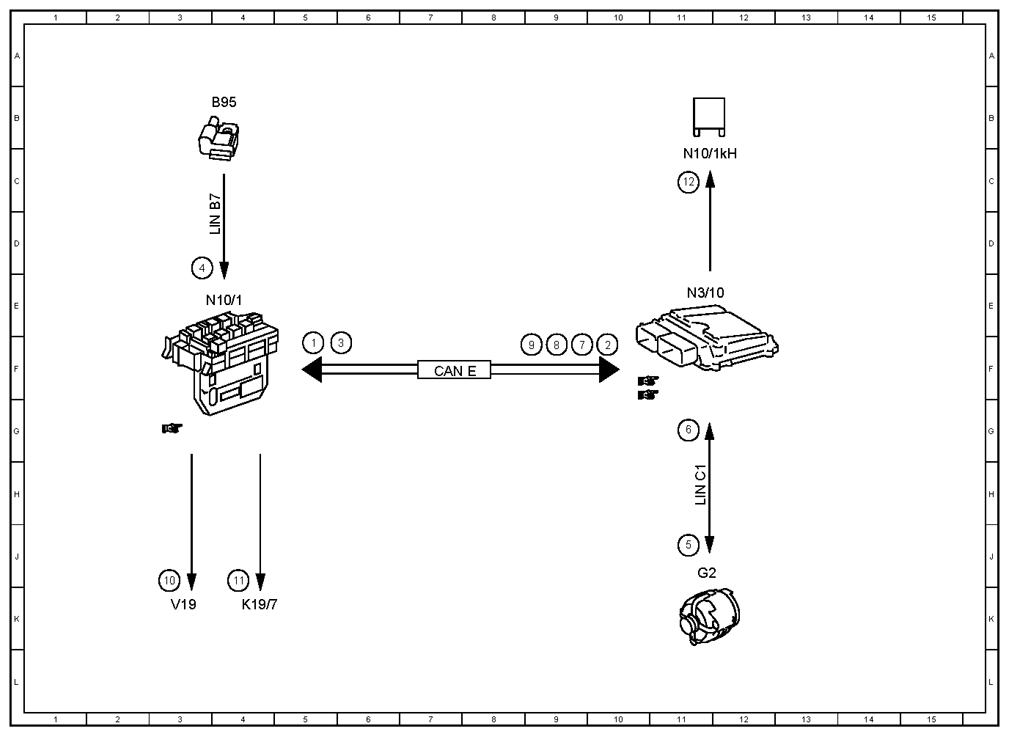

| 1 |
Circuit 61, status |
5F |
| 10 |
ECO start/stop function diode and on-board electrical system decoupling relay actuation, request |
3J |
| 11 |
Decoupling relay, actuation |
4J |
| 12 |
Starter circuit 50 relay, actuation |
11C |
| 2 |
ATA [EDW] engine hood switch, status |
10F |
| 3 |
ECO start/stop function diode, actuation |
6F |
| 4 |
Battery sensor, signal |
3D |
| 5 |
Alternator, request |
11J |
| 6 |
Alternator operating rate, signal |
11G |
| 7 |
On-board electrical system, status |
9F |
| 8 |
Door rotary tumbler switch, status |
9F |
| 9 |
Air conditioning, status |
9F |
| B95 |
Battery sensor |
4B |
| CAN E |
Chassis CAN |
7F |
| G2 |
Alternator |
11J |
| K19/7 |
Decoupling relay |
4K |
| LIN B7 |
On-board electrical system LIN |
3D |
| LIN C1 |
Drive train LIN |
11H |
| N10/1 |
Front SAM control unit with fuse and relay module |
4E |
| N10/1kH |
Circuit 50 relay, starter |
11C |
| N3/10 |
ME-SFI [ME] control unit |
11E |
| V19 |
ECO start/stop function diode |
3K |
