Removing and installing steering column adjustment switch - AR54.25-P-2804SX

MODEL 216.3, 221.0/1

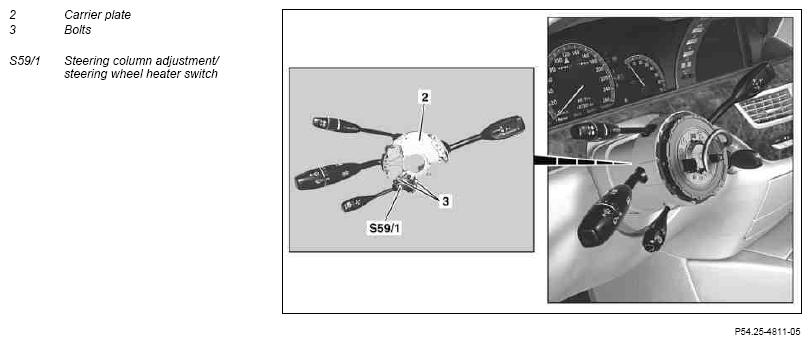

Fig 1: Identifying Steering Column Adjustment Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering angle sensor		AR46.10-P-0300SX
2	Remove bolts (3)
3	Remove switch (S59/1) from carrier plate (2)
4	Install in the reverse order
5	Perform function check on switch (S59/1)
