Remove/install upper control panel control unit - AR54.21-P-1262SX
MODEL 216.3, 221.0/1

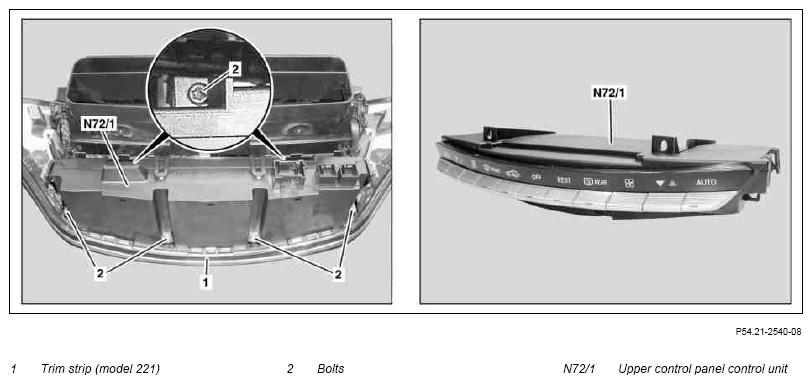

Shown on model 221
| Remove/install | |||
| 1.1 | Remove trim strip (1) from instrument panel | Model 221 | AR68.10-P-1180SX |
| 1.2 | Remove cover for upper control panel control unit (N72/1) | Model 216 | AR68.20-P-2314SC |
| 2 | Unscrew bolts (2) and remove upper control panel control unit (N72/1) | ||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 3 | Install in the reverse order |
