Remove/install pyrofuse - AR54.10-P-1180SXH
MODEL 221.095/195 with ENGINE 272.974
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003SX | |
| 2 | Move the front passenger seat into the rearmost position | ||

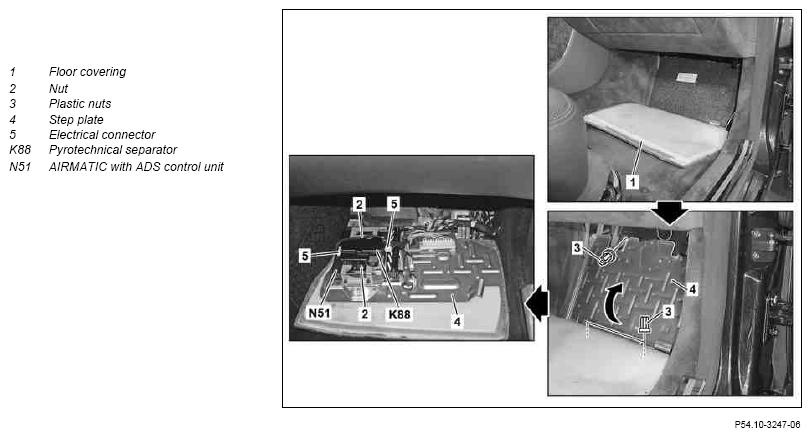

| 3 | Remove floor mat and fold back floor covering (1) in front passenger footwell | ||
| 4 | Unscrew plastic nuts (3) and tilt step plate (4) in the direction of the arrow | ||
| 5 | Disconnect electrical connectors (5) | ||
| 6 | Unscrew nuts (2) | ||
| 7 | Remove pyrotechnical separating element (K88) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect Star Diagnosis, read out fault memory and erase if necessary | When replacing the pyrotechnical separating element (K88). | |
| AD00.00-P-2000-04A |
