Remove/install light module - AR54.25-P-3260I

MODEL 220

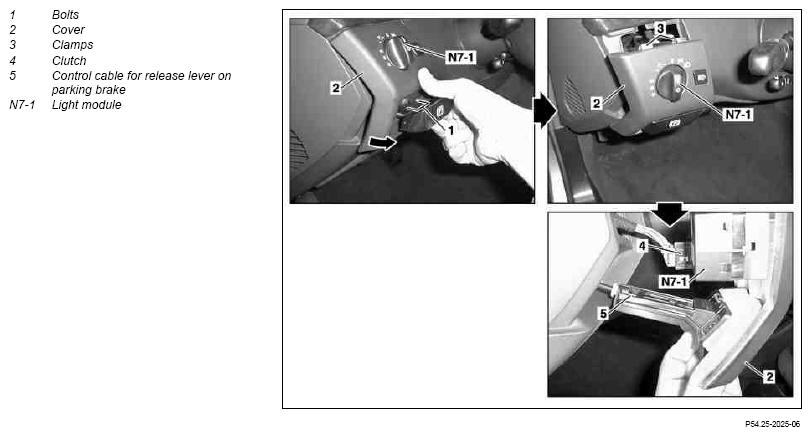

Fig 1: Identifying Light Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove, Install
1	Connect quiescent current retention device		AR54.10-P-1030-01I
2	Disconnect ground cable of battery		AR54.10-P-0003I
3	Pull out release lever for parking brake
4	Unscrew bolts (1)
5	Remove cover (2) with light module (N7-1) from instrument panel	Pull parking brake release lever until cover folds out of instrument panel in direction of arrow. Observe clips (3).
6	Release connector (4) and disconnect
7	Unhook control cable (5) from release lever on parking brake.
8	Install in the reverse order
9	Perform function check
