Remove/install front prefuse box - AR54.15-P-1330SX

MODEL 216.3 up to 1.6.08 except CODE (809) Model year 2009

MODEL 221.0/1 up to 1.6.08 except CODE (809) Model year 2009

Shown on model 221

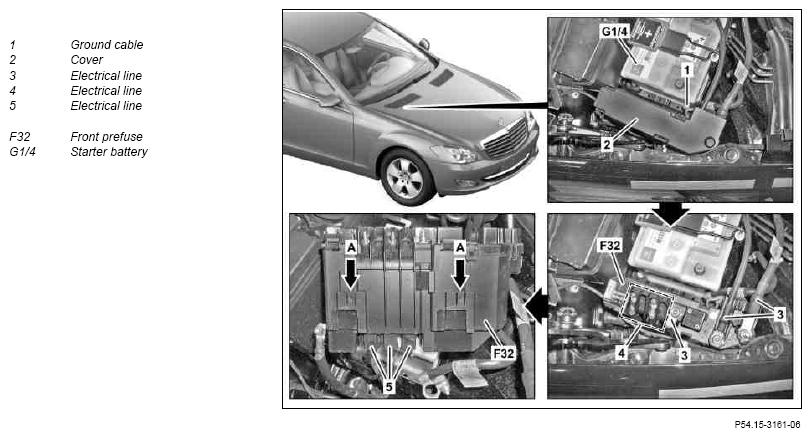

Fig 1: Identifying Front Pre-Fuse Box Remove/Install Components - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect ground line (1) of starter battery (G1/4) and the on-board electrical system battery	Disconnect ground line (1) on on-board electrical system with two batteries.	AR54.10-P-0003SX
2	Unclip cover (2) on the front prefuse box (F32)
3	Detach electrical lines (3) at the top of the prefuse box at the front (F32)	The electrical lines (3) are coded.
4	Detach electrical lines (4) at the top of the prefuse box at the front (F32)	The number of the electrical lines (4) differs depending on the vehicle equipment. The electrical lines (4) are coded.
5	Unclip prefuse box at front (F32) (arrows A), pull out upwards and place to one side	Pay attention to correct seat of prefuse box at front (F32).
6	Disconnect electrical connectors (5) at bottom of prefuse box at front (F32)
7	Remove prefuse box at front (F32)
8	Install in the reverse order
