Remove/install Night View Assist control unit - AR54.30-P-3000SX

MODEL 212, 216.3, 218, 221.0/1 with CODE (610) Night vision assist

Shown on model 221

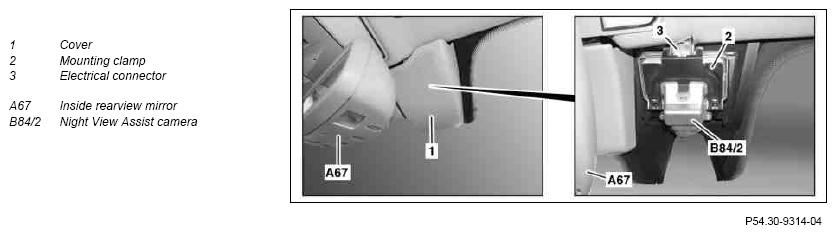

Fig 1: Identifying Night View Assist Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO stop/start button from the EIS (EZS) control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
2	Swivel inside rearview mirror (A67) to one side
3.1	Unclip and remove cover (1)	Model 212, 218, 221 model 216 up to model year 2011
3.2	Slide cover (1) all way forward and remove	Model 216 as of model year 2011
4	Remove splinter protection	Model 212 with CODE (Z04) Light armoring
			*BA63.20-P-1004-01B
5	Unclip mounting clamp (2) and swing downwards
6	Remove Night View Assist camera (B84/2) and disconnect electrical connector (3)	Do not touch lens of Night View Assist camera (B84/2) with the fingers.
7	Install in the reverse order
8	Calibrate Night View Assist camera (B84/2) using Star Diagnosis	The calibration target is required to calibrate the Night View Assist camera (B84/2). Calibration target for Night Vision Assist	AD00.00-P-2000-04A
