Remove/install door sill - AR68.30-P-4100SX
MODEL 221.0
MODEL 221.1 except CODE (Z07) Top protection

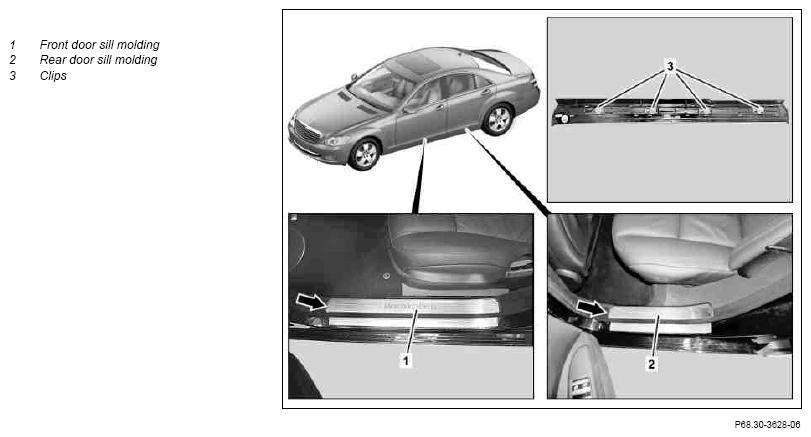

Shown on model 221.0
| Remove | |||
| 1 | Insert long wedge from front (arrow) below front entry molding (1) or rear entry molding (2) next to first clip to be released (3), turn 90° toward inside and unclip clip (3) by pressing long wedge upward | Figure | |
| 2 | Continue to insert long wedge next to all other clips (3) on front entry molding (1) or rear entry molding (2) and unclip clip (3) by pressing long wedge upward | Figure | |
| 3 | Pivot front door sill molding (1) or rear door sill molding (2) upward from rear (arrow) and lift out of retaining clips. | ||
| Install | |||
| 4 | First insert front door sill molding (1) or rear door sill molding (2) into retaining clips and then clip in toward rear. |
