Remove/install center console paneling - AR68.20-P-5169SX

MODEL 221.0/1 Rear paneling

Shown with code (582) Rear air conditioning

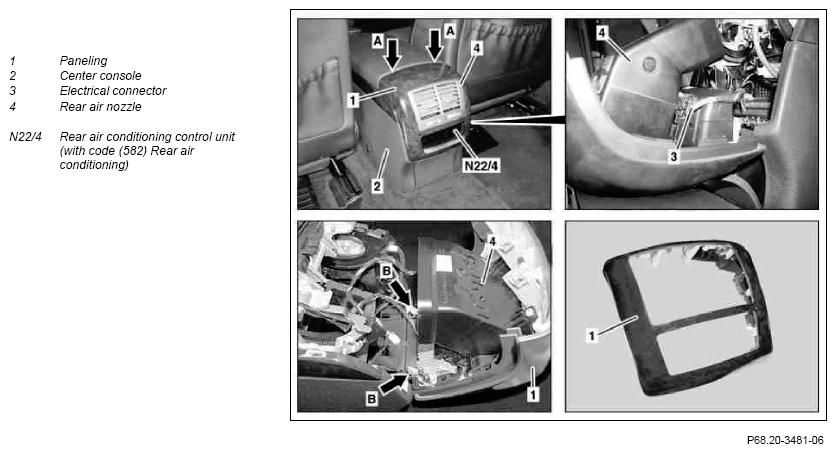

Fig 1: Identifying Center Console Paneling Remove/Install Components - Shown With Code (582)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Manually unclip paneling (11) toward rear from center console (2) (arrows A), tilt downward and remove from center console (2).	Insert paneling (1) from bottom into mounts (arrows B) on center console, tilt upward and clip into center console (2).
2	Disconnect electrical connector (3) from rear center nozzle potentiometer.
3.1	Disconnect electrical connector on rear air conditioning control unit (N22/4)	On vehicles with code (582) Rear air conditioning
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
4.1	Remove rear air nozzle (4) from paneling (1).	When replacing paneling (1).
		Rechargeable drill/screwdriver	*WH58.30-Z-1007-20A
5.1	Remove stowage compartment or rear air conditioning control unit (N22/4) from paneling (1).	When replacing paneling (1). Remove rear AC control unit (N22/4) on vehicles with code (582) Rear air conditioning, see: ↓
		Remove and install rear air conditioning control and operating unit	AR83.50-P-9070SX
6	Install in the reverse order
