Remove/install rear door holder - AR72.12-P-2100SXS

MODEL 221.1 with CODE (Z07) Top protection with hydraulic power windows

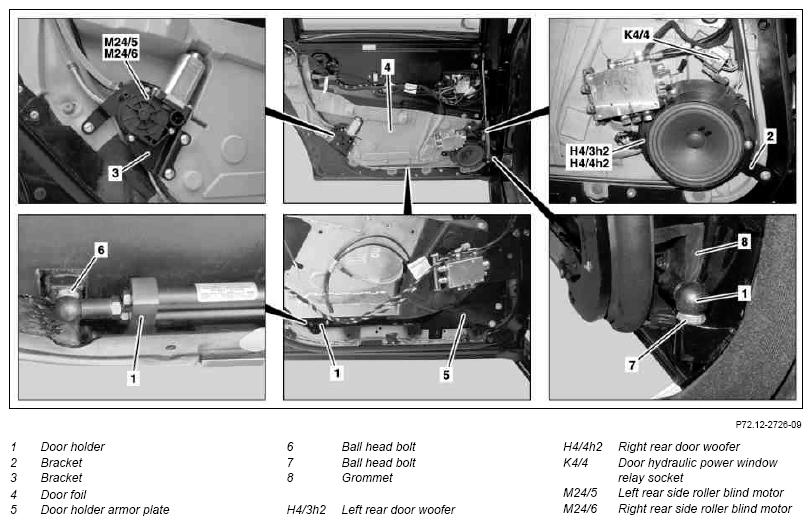

Fig 1: Identifying Rear Door Holder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	When working on unsecured rear door, ensure that it does not swing all the way open, otherwise, the rear door can be damaged.
1	Remove door lining from left or right rear door		AR72.12-P-1010SXS
2	Remove door hydraulic power window relay socket (K4/4) from bracket (2)
3	Remove bracket (2) with left rear door woofer (H4/3h2) or right rear door woofer (H4/4h2)
4	Remove bracket (3) with left rear side roller blind motor (M24/5) or right rear side roller blind motor (M24/6)
5	Separate door foil (4) in front and bottom area of rear door		AR72.12-P-0105SXS
6	Remove door holder armor plate (5)
7	Pry off door holder (1) of ball head bolt (6) on rear door		Figure
8	Pry off door holder (1) of ball head bolt (7) on B-pillar		Figure
9	Moisten grommet (8) and front part of door holder (1) with liquid lubricant	This allows the door holder (1) to be pulled through the grommet (8) more easily.
		Antifriction agent	*BR00.45-Z-1010-06A
10	Turn door holder (1), carefully pull inward through grommet (8) and remove from rear door toward rear	Counterhold grommet (8) from inside; otherwise, it can separate from the rear door or be damaged.
	Install
11	Moisten grommet (8) and front part of door holder (1) with liquid lubricant	Antifriction agent	*BR00.45-Z-1010-06A
12	Insert door holder (1) into rear door and carefully press outward through grommet (8)	Counterhold grommet (8) from outside; otherwise, it can separate from the rear door or be damaged.
13	Press door holder (1) onto ball head bolt (7) on B-pillar	Ensure that door holder (1) is properly seated on ball head bolt (7).
14	Press door holder (1) onto ball head bolt (6) on rear door	Ensure that door holder (1) is properly seated on ball head bolt (6).
15	Install door holder armor plate (5)		*BA72.12-P-1026-01N
16	Fasten door foil (4) to rear door		AR72.12-P-0105SXS
17	Install bracket (3) with left rear side roller blind motor (M24/5) or right rear side roller blind motor (M24/6)		*BA72.12-P-1024-01N
18	Install bracket (2) with left rear door woofer (H4/3h2) or right rear door woofer (H4/4h2)
19	Install door hydraulic power window relay socket (K4/4) to bracket (2)
20	Install rear door lining		AR72.12-P-1010SXS

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
