Remove/install fixed window in rear door - AR72.12-P-1970SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown on model 221.1 with code (297) Roller sun blinds in rear doors

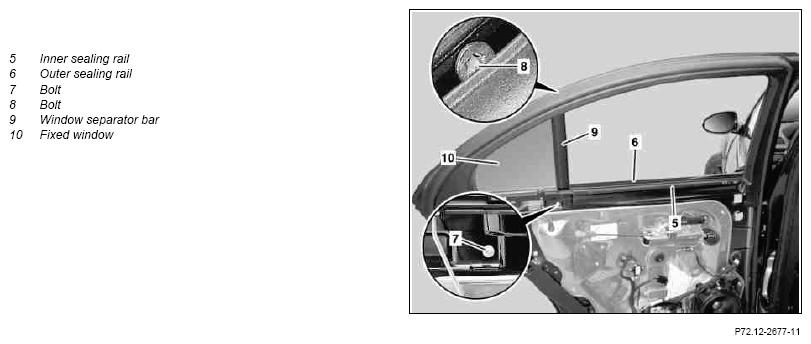

Fig 1: Identifying Rear Door Fixed Window Remove/Install Components - Shown On Model 221.1

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 without code (297) Roller sun blinds in rear doors

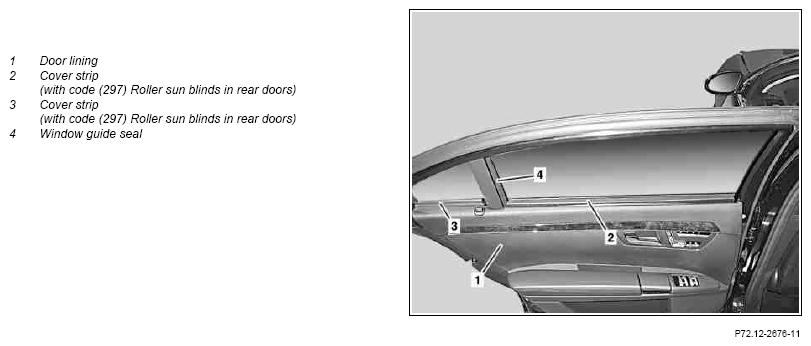

Fig 2: Identifying Rear Door Fixed Window Remove/Install Components - Shown On Model 221.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining (1) from rear door		AR72.12-P-1010SX
2.1	Remove cover strips (2, 3) upward with pulling hook	On vehicles with code (297) Roller sun blinds in rear doors
			Figure
3	Remove inner sealing rail (5)		Figure
4	Remove outer sealing rail (6)		Figure
5	Loosen window guide rail (4) in area of window separator bar (9)	Use liquid lubricant. Position window guide seal (4) in window separator bar (9) and window frame with end of roller shaft.
			Figure
		Antifriction agent	*BR00.45-Z-1010-06A
6	Unscrew bolt (8).
7	Unscrew bolt (7) and remove window separator bar (9)	Coat window separator bar (9) in bottom area with lubricant and install.
			*BA72.12-P-1013-01M
		Antifriction agent	*BR00.45-Z-1010-06A
8	Remove stationary window (10)	Coat seal of stationary window (10) with lubricant and insert.
		Antifriction agent	*BR00.45-Z-1010-06A
9	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Roller (171 589 06 63 00)

Courtesy of MERCEDES-BENZ USA
