Remove/install seal (top) on front door window frame - AR72.10-P-1550SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

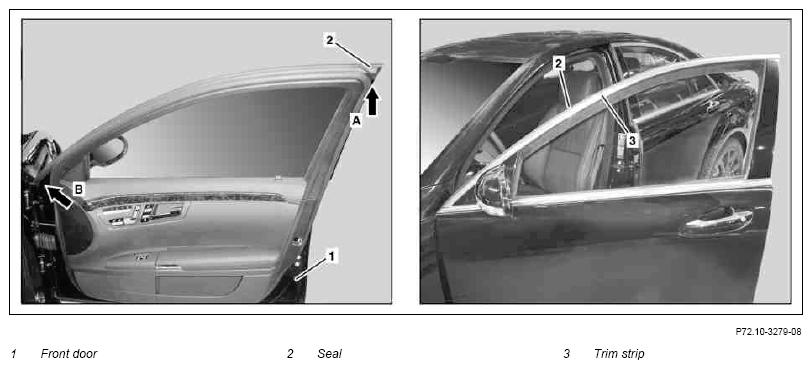

Fig 1: Identifying Front Door Window Frame Seal Remove/Install Component (Top)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Open front door (1)
2	Loosen sealing (2) on upper window frame (arrow A) and front window frame (arrow B)
3	Pull sealing (2) out of trim strip (3).
	Install
4	Coat trim strip (3) with lubricant and install sealing (2) in trim strip (3).	Ensure that sealing (2) is seated correctly.
		Antifriction agent	*BR00.45-Z-1010-06A
5	Close front door (1).

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
