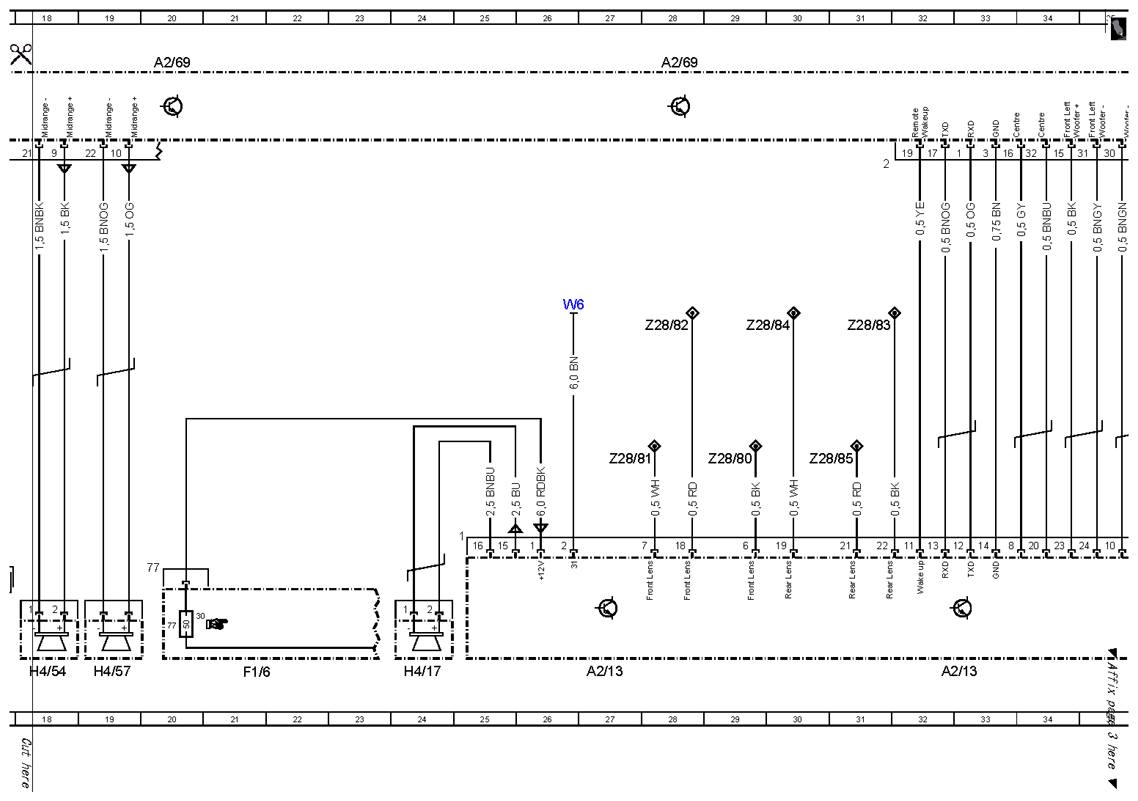

| A2/13 |
Sound amplifier |
32L |
| A2/13 |
Sound amplifier |
27L |

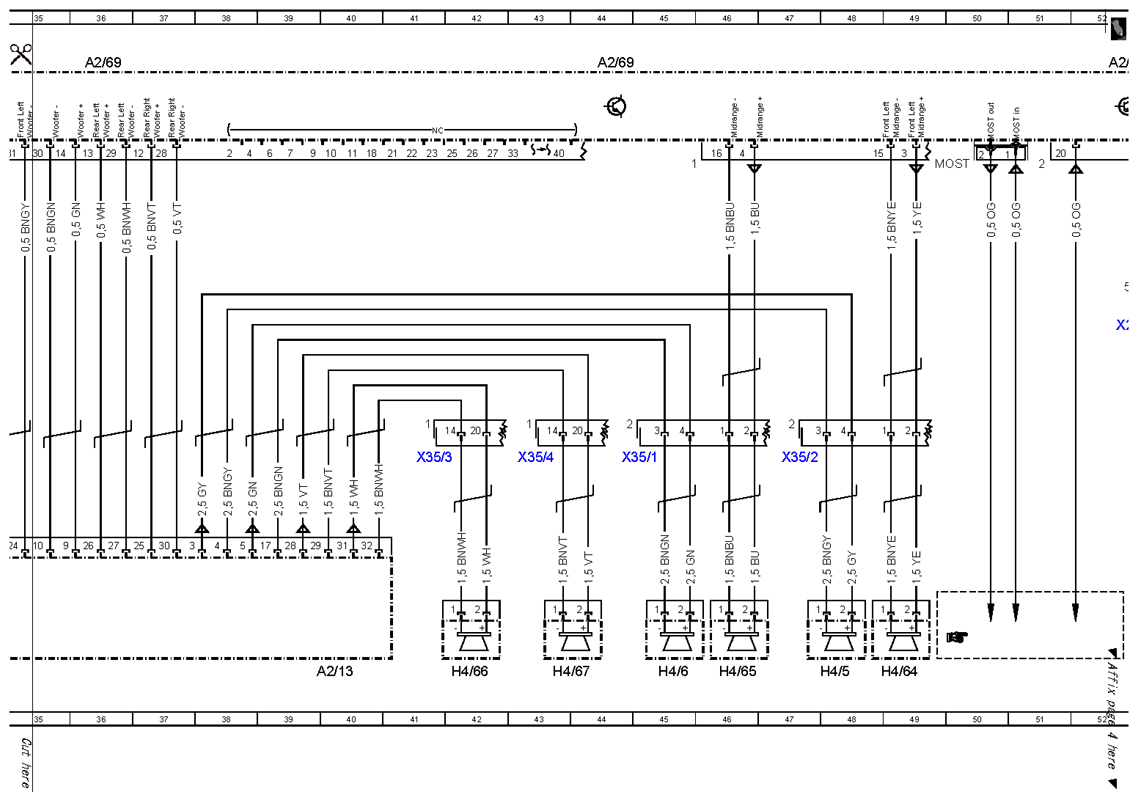

| A2/13 |
Sound amplifier |
40L |

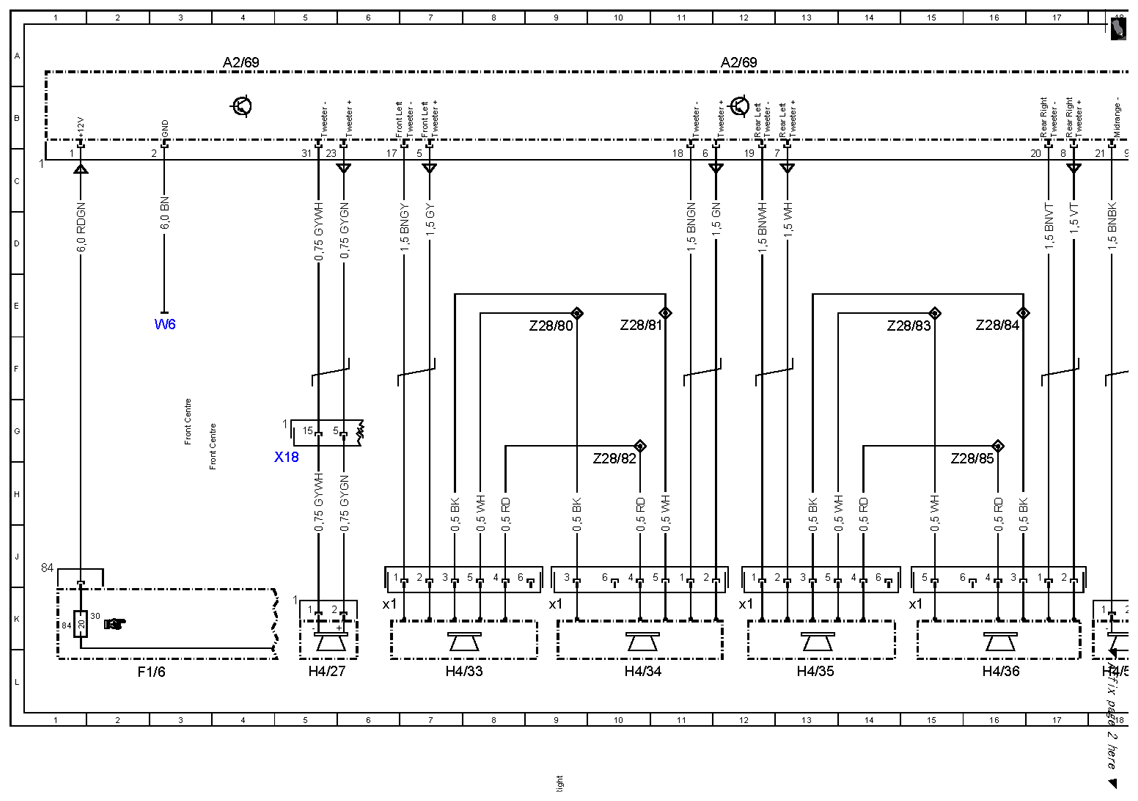

| A2/69 |
Digital sound processor |
4A |
| A2/69 |
Digital sound processor |
12A |
| A2/69 |
Digital sound processor |
20A |
| A2/69 |
Digital sound processor |
28A |
| A2/69 |
Digital sound processor |
36A |
| A2/69 |
Digital sound processor |
44A |
| A2/69 |
Digital sound processor |
52A |

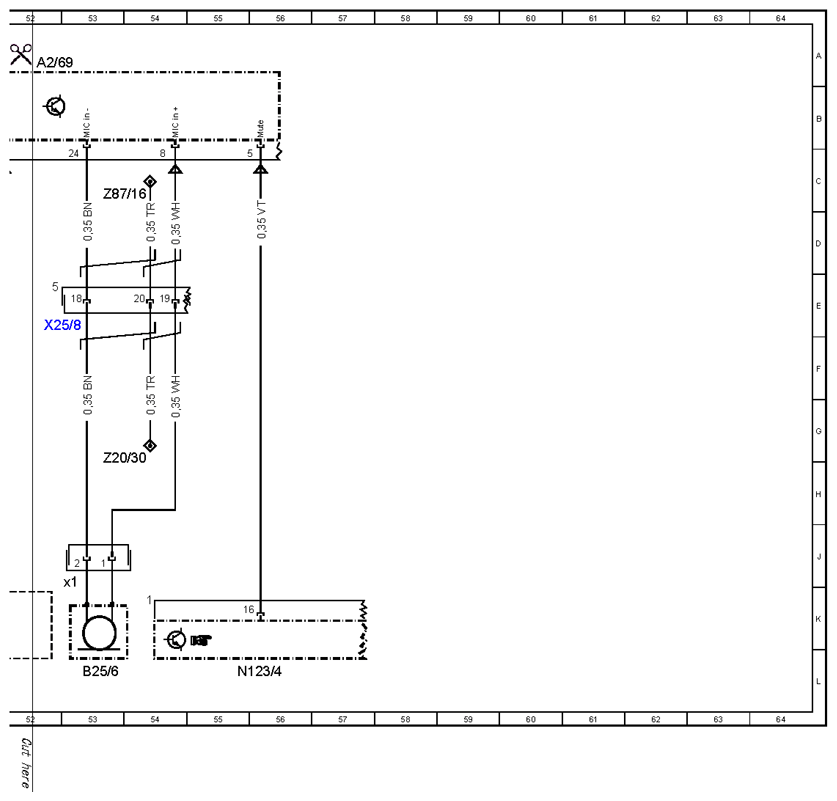

| B25/6 |
Sound amplifier microphone |
53L |
| B25/6x1 |
Sound amplifier microphone connector |
53J |
| F1/6 |
Right instrument panel fuse box |
3L |
| F1/6 |
Right instrument panel fuse box |
21L |
| F1/6f77 |
Fuse 77 |
20K |
| F1/6f84 |
Fuse 84 |
1K |
| H4/17 |
Bass module speaker |
24L |
| H4/27 |
Center cockpit speaker (centerfill) |
5L |
| H4/33 |
Left front door tweeter |
7L |
| H4/33x1 |
Left front door tweeter electrical connector |
6K |
| H4/34 |
Right front door tweeter |
10L |
| H4/34x1 |
Right front door tweeter electrical connector |
9K |
| H4/35 |
Left rear door tweeter |
13L |
| H4/35x1 |
Left rear door tweeter electrical connector |
12K |
| H4/36 |
Right rear door tweeter |
16L |
| H4/36x1 |
Right rear door tweeter electrical connector |
15K |
| H4/5 |
Left front door speaker |
48L |
| H4/54 |
Left rear surround speaker |
18L |
| H4/57 |
Right rear surround speaker |
19L |
| H4/6 |
Right front door speaker |
45L |
| H4/64 |
Left front door woofer |
49L |
| H4/65 |
Right front door woofer |
46L |
| H4/66 |
Left rear door woofer |
42L |
| H4/67 |
Right rear door woofer |
43L |
| MOST |
Media Oriented System Transport |
50C |
| N123/4 |
Emergency call system control unit |
55L |
| W6 |
Ground (left wheelhouse in luggage compartment) |
26E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
3E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
5H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
53E |
| X35/1 |
Left front door and FFS [RBA] connector |
45H |
| X35/2 |
Right front door and FFS [RBA] connector |
47H |
| X35/3 |
Left rear door separation point |
41H |
| X35/4 |
Right rear door separation point |
43H |
| Z20/30 |
Tracer wire connector sleeve |
54H |
| Z28/80 |
Front tweeter connector sleeve 1 |
29H |
| Z28/80 |
Front tweeter connector sleeve 1 |
9E |
| Z28/81 |
Front tweeter connector sleeve 2 |
27H |
| Z28/81 |
Front tweeter connector sleeve 2 |
10E |
| Z28/82 |
Front tweeter connector sleeve 3 |
10H |
| Z28/82 |
Front tweeter connector sleeve 3 |
28E |
| Z28/83 |
Rear tweeter connector sleeve 1 |
15E |
| Z28/83 |
Rear tweeter connector sleeve 1 |
31E |
| Z28/84 |
Rear tweeter connector sleeve 2 |
16E |
| Z28/84 |
Rear tweeter connector sleeve 2 |
30E |
| Z28/85 |
Rear tweeter connector sleeve 3 |
16H |
| Z28/85 |
Rear tweeter connector sleeve 3 |
31H |
| Z87/16 |
Microphone screen connector sleeve |
54C |
