Removing and installing washing water reservoir - AR82.35-P-6000M
MODEL 215, 220

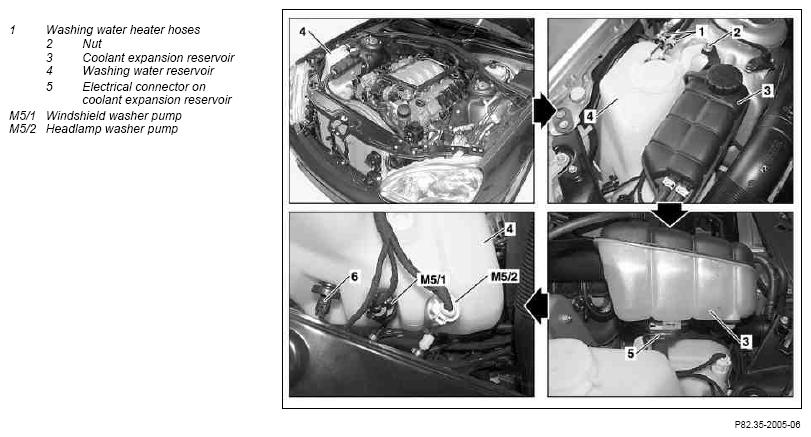

Illustrated on model 220
| Removal, installation | |||
| 1 | Open engine hood and move to upright position | ||
| 2 | Remove washing water heater hoses (1) on washing water reservoir (4) | ||
| 3 | Unscrew nuts (2) and lift coolant expansion reservoir (3) up and lay down to side | ||
| Danger of severe burns to skin and eyes from hot coolant spewing out. Coolant is toxic when swallowed | Open cooling system only when coolant temperature is below 90 °C Open cover slowly and reduce pressure Do not fill beverage containers with coolant Wear protective gloves, protective clothing and protective goggles |
||
| 4 | Unclip electrical connector (5) from coolant expansion reservoir (3) and place coolant expansion reservoir (3) to side | ||
| 5 | Unclip electrical connector (6) from washing water reservoir (4) | ||
| 6 | Pull windshield washer pump (M5/1) and headlamp washer pump (M5/2) up completely out of washing water reservoir (4) together with outlet hoses and electrical connections | ||
| 7 | Remove washing water reservoir (4) upward | ||
| 8 | Install in opposite order | ||
| 9 | Fill windshield washer reservoir | For mixing ration see table on package MB windshield washer concentrate according to service product specifications sheet 371. |
|
| 10 | Check pumps for proper function |
