Remove/install oil filler pipe for automatic transmission - AR27.10-P-7010SZ
TRANSMISSION 722.6 in MODEL 216.3, 221.1
| Remove/install | |||
| 1 | Remove bottom engine compartment paneling | Vehicles without code (Z07) Top protection | AR61.20-P-1105SX |
| Vehicles with code (Z07) Top protection | AR61.20-P-1105SXS | ||
| 2 | Detach exhaust system from flange connections (center muffler to catalytic converters) | See Remove/install exhaust system components. | AR49.10-P-7100SX |
| 3 | Support transmission (1) with transmission jack and platform | Transmission jack 2.0-7.0 t Transmission plate for passenger cars and commercial vehicles |
|
| 4 | Remove rear engine crossmember and detach rear engine mount from transmission (1) | AR22.10-P-1180SX | |
| 5 | Lower the transmission jack slightly | ||
| 6 | Loosen bolt (2) | *BA27.40-P-1019-01A | |
| 7 | Remove bolt (3) | *BA27.40-P-1008-01A | |

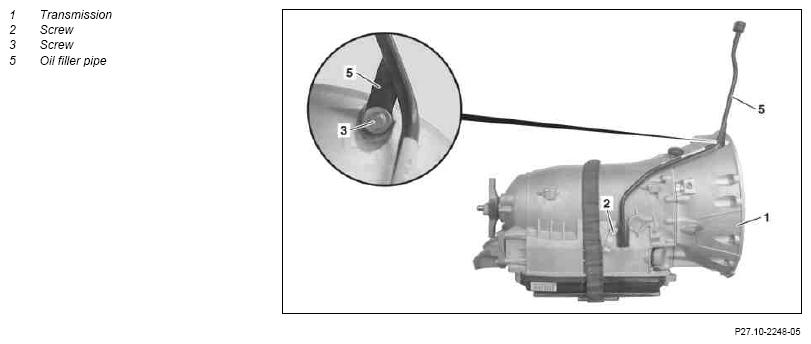

| 8 | Pull oil filler pipe (5) out of transmission (1) | ||
| 9 | Install in the reverse order | ||
| 10 | Check oil level in automatic transmission (1); correct if necessary | AR27.00-P-0100AC | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Perform engine test run and check transmission (1) for function and leaks |
HOUSING
| Number | Designation | Transmission 722.6 except 722.660/661/662/663/666/673/674 | ||
|---|---|---|---|---|
| BA27.40-P-1008-01A | Bolt, automatic transmission to engine | M10 X 40 | Nm | 39 |
| M10 X 90 | Nm | 39 | ||
| M12 | Nm | - | ||
| BA27.40-P-1019-01A | Bolt, leaf spring to transmission housing | Nm | 8 | |
