Remove/install steering knuckle - AR33.25-P-0400SYZ

MODEL 221.08/18

MODEL 221.09/19 Vehicles with 4MATIC

MODEL 216.38/39

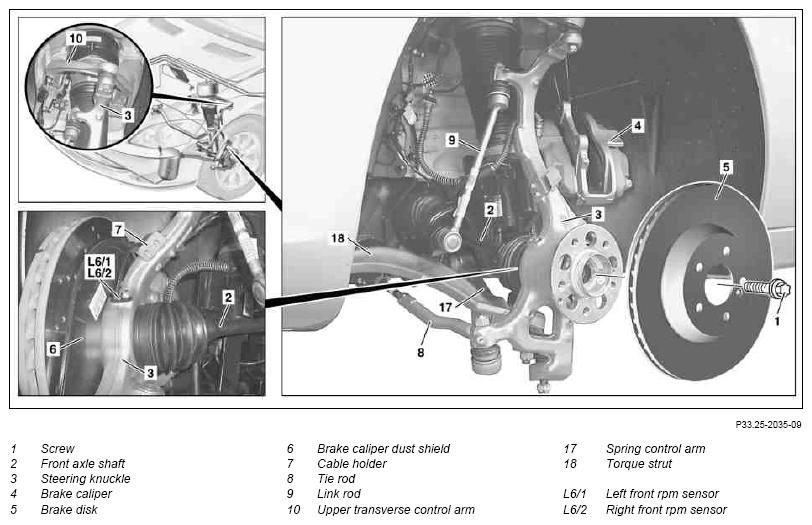

Fig 1: Identifying Steering Knuckle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.
		Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1	Remove front wheel
	Remove/install wheels		AP40.10-P-4050SX
2	Remove bolt (1) from front axle shaft (2)		*BA33.30-P-1001-02F
3	Detach rpm sensor (L6/1 or L6/2) from steering knuckle (3)		AR42.30-P-0712SX
4	Remove brake disc (5)		AR42.10-P-0220SX
5	Unclip electrical feed line for rpm sensor (L6/1 or L6/2) from cable bracket (7)
6	Detach tie rod (8) from steering knuckle (3)		AR46.40-P-0200-02SX
			*BA46.40-P-1001-01M
			Fig 6
			Figure
			Figure
			Figure
7	Remove torque strut (18) from steering knuckle (3)		AR33.15-P-0160-01SX
			*BA33.20-P-1004-01M
			Figure
8	Detach spring control arm (17) from steering knuckle (3)		AR33.15-P-0170-01SX
			*BA33.20-P-1003-01M
			Figure
9	Detach link rod (9) from steering knuckle (3)		*BA32.20-P-1002-02O
10	Detach upper transverse control arm (10) from steering knuckle (3)		AR33.20-P-0500-01SX
			*BA33.20-P-1007-01M
			Figure
			Figure
11	Tilt steering knuckle (3) outward to side while moving front axle shaft (2) out of front axle shaft flange, and lower to remove	Do not damage the rubber boots of the front axle shaft (2).
12	Remove brake cover plate (6)	When replacing steering knuckle (3)
12	Remove brake cover plate (6)		*BA42.10-P-1003-06G
13	Detach cable bracket (7) from steering knuckle (3)	When replacing steering knuckle (3)
	Checking
14	Check rubber boot and ball joint of tie rod (8) for wear and damage	Replace tie rod (8) if necessary.	AR46.40-P-0200SX
15	Check rubber boot and ball joint of torque strut (18) for wear and damage	If necessary replace the radius rod (18).	AR33.15-P-0160SX
16	Check rubber boot and supporting ball joint of spring control arm (17) for damage	Replace spring control arm (17) if necessary.	AR33.15-P-0170SYZ
17	Check rubber boot and upper ball joint of upper transverse control arm (10) for damage	Install new upper transverse control arm (10) if necessary.	AR33.20-P-0500SX
18	Install in the reverse order

FRONT AXLE SHAFT

Number	Designation			Model 216	Model 221
BA33.30-P-1001-02F	Bolt, front axle shaft to wheel hub	Stage 1	Nm	160	160
		Stage 2		Releasing	Releasing
		Stage 3	Nm	120	120
		Stage 4	∠°	90	90

WHEEL LOCATION, HUB

Number	Designation			Model 216 with 4MATIC	Model 221.08/09/18/19 with 4MATIC without code Z07
BA33.20-P-1003-01M	Self-locking nut, track control arm to stub axle	Stage 1	Nm	50	50
BA33.20-P-1003-01M	Self-locking nut, track control arm to stub axle	Stage 2	∠°	90	90
BA33.20-P-1004-01M	Self-locking nut, radius rod to steering knuckle	Stage 1	Nm	50	50
BA33.20-P-1004-01M	Self-locking nut, radius rod to steering knuckle	Stage 2	∠°	90	90
BA33.20-P-1007-01M	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20	20
BA33.20-P-1007-01M		Stage 2	∠°	90	90

FRONT AXLE STABILIZER BAR

Number	Designation		Model 216	Model 221
BA32.20-P-1002-02O	Nut, link rod to steering knuckle	Nm	90	90

BRAKE DISCS, BRAKE COVER PLATE

Number	Designation			Model 216	Model 221
BA42.10-P-1003-06G	Bolt brake cover plate to steering knuckle or wheel carrier	M6	Nm	14	14
BA42.10-P-1003-06G	Bolt brake cover plate to steering knuckle or wheel carrier	M8	Nm	18	18

TIE ROD

Number	Designation			Model 216	Model 221
BA46.40-P-1001-01M	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	50	50
BA46.40-P-1001-01M	Self-locking nut, tie rod to steering knuckle	Stage 2	∠°	60	60
