Remove/install hydraulic line of power steering - AR46.25-P-3015SXB

MODEL 221.0/1 power steering return line, without electrohydraulic power steering (EHPS)

MODEL 216 power steering return line, without electrohydraulic power steering (EHPS)

Shown on vehicle with AIRmatic

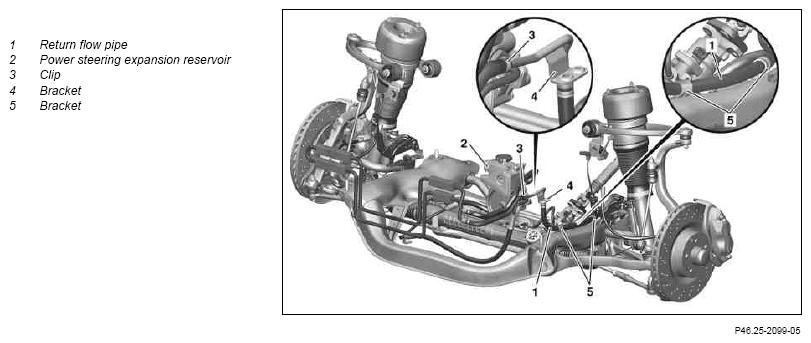

Fig 1: Identifying Power Steering Hydraulic Line Components - Shown On Vehicle With AIRmatic

Courtesy of MERCEDES-BENZ USA

	Remove/install
		Before opening the hydraulic system the area surrounding the separation point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system.
1.1	Remove air filter housing	Engine 272, 273 without code (487) Active Body Control (ABC)	AR09.10-P-1150SX
		Engine 629	AR09.10-P-1150SXD
1.2	Remove engine trim panel	Engine 642	AR01.10-P-2405SXI
2	Suction off oil from expansion reservoir (2)		Figure
3	Remove bottom engine compartment paneling	Model 216, model 221 without code (Z07) Top protection	AR61.20-P-1105SX
		Model 221 with code (Z07) Top protection	AR61.20-P-1105SXS
4	Remove diesel particulate filter	Engine 629	AR14.40-P-1000SXJ
5	Remove heat shield over left longitudinal member	Engine 275: Attach engine lifting device and raise engine slightly: ↓
		Attach engine lifting device.	AR33.10-P-0105SX
6	Detach bracket (4) of return line (1) from longitudinal member
7	Detach bracket (5) of return line (1) from front axle carrier
8	Detach retaining plate from rack-and-pinion steering and pull return line (1) out of rack-and-pinion steering	Model 221 with code (487) Active Body Control (ABC)	*BA46.30-P-1012-01N
		Model 221 without code (487) Active Body Control (ABC)	*BA46.30-P-1012-01F
		Model 216 except engine 156 and engine 273.968	*BA46.30-P-1011-01Q
		Model 216 with engine 156	*BA46.30-P-1010-01O
		Model 216 with engine 273.968	*BA46.30-P-1012-01F
			Figure
9	Detach clamp (3) of return line (1) on connecting line and detach return line (1)		Figure
10	Remove return line (1)
11	Install in the reverse order
12	Fill power steering pump and bleed		AR46.30-P-0010SX

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
