Remove/install poly V-belt tensioning device - AR13.25-P-3200SXI
ENGINE 642 in MODEL 221
| Remove/install | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 1 | Remove engine cover | AR01.10-P-2405SXI | |
| 2 | Remove poly-V-belt | AR13.22-P-1202SXI | |

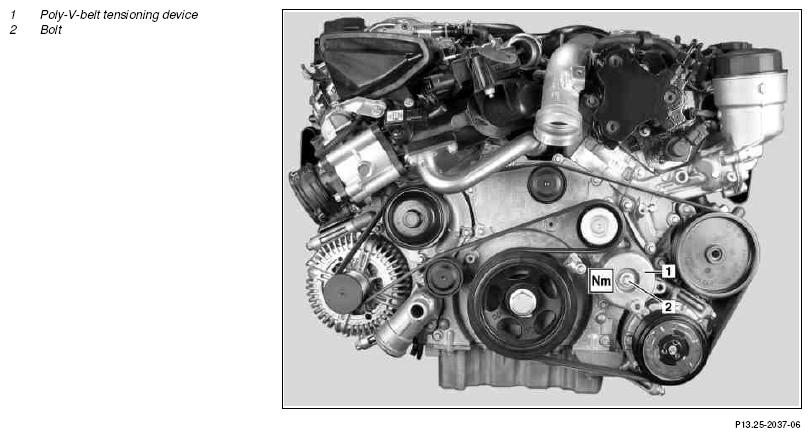

| 3 | Unscrew bolt (2) of poly-V-belt tensioning device (1) | *BA13.25-P-1001-01T | |
| 4 | Remove poly-V-belt tensioning device (1) | ||
| 5 | Install in the reverse order |
BELT TENSIONING DEVICE
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA13.25-P-1001-01T | Bolt connecting poly-V-belt tensioning device to crankcase | Nm | 58 |
