Notes on squib on extinguishing agent tank - AH86.10-P-0001-04B
WARNING: This page does not describe the selected car, but rather 175 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz S65 AMG, 2019 Mercedes-Benz SLC300, 2019 Mercedes-Benz S65 AMG, and 2019 Mercedes-Benz GLA45 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 463.242

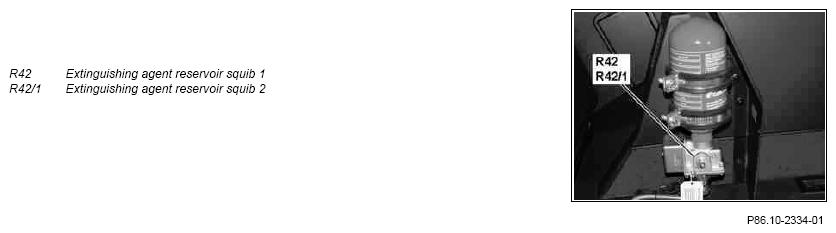

- Squibs (R42, R42/1) are pyrotechnically objects for subclass T1 technical applications and must be kept locked away and out of reach of children.
- Always store squibs (R42, R42/1) in closed original package and remove just before assembly. Observe notes printed in original package concerning protective equipment, assembly as well as disposal, otherwise correct function of the squibs (R42, R42/1) and work safety is not ensured.
- Keep squibs (R42, R42/1) away from moisture, temperatures above 90 °C, friction, electrostatic discharge or radio waves.
- Squibs (R42, R42/1) must not be machined, allowed to drop or be subject to concussions.
- When testing squibs (R42, R42/1) ensure that they are mounted properly on the extinguishing agent tanks.
- Do not test squibs (R42, R42/1) using measuring instruments or test lamps as they can be triggered at a measuring current of 0.013 A. They should be checked only via the fire extinguishing system warning buzzer, i.e. via the fire extinguishing system control unit.
