Notes on bonded and foam-lined body areas - AH60.00-P-0010-01N

WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 215

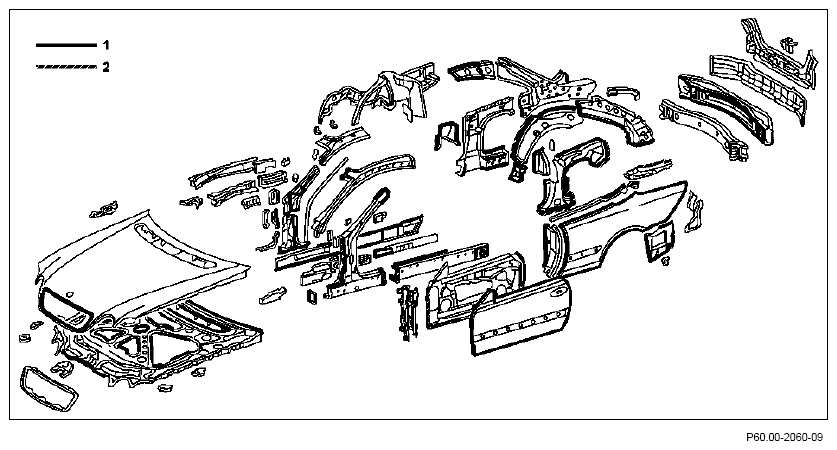

Fig 1: Identifying Bonded And Foam-Lined Body Areas
G10035826Courtesy of MERCEDES-BENZ USA
  1. adhesive seams
  2. seal seams

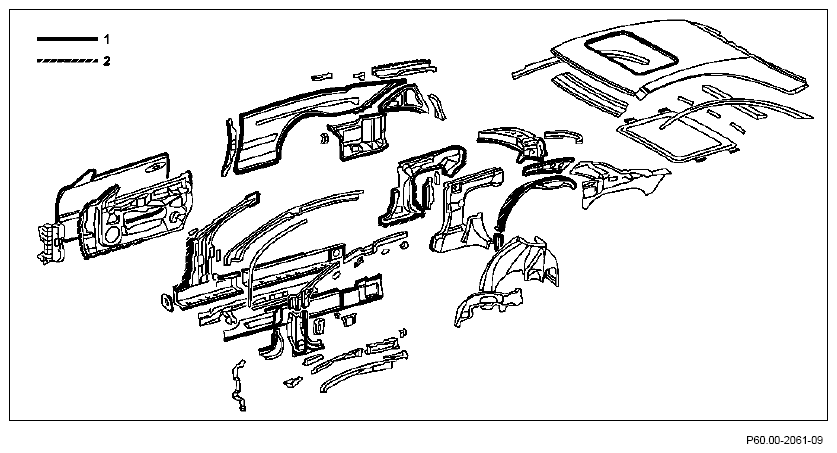

    Fig 2: Identifying Bonded And Foam-Lined Body Areas
    G10035827Courtesy of MERCEDES-BENZ USA
  1. adhesive seams
  2. seal seams

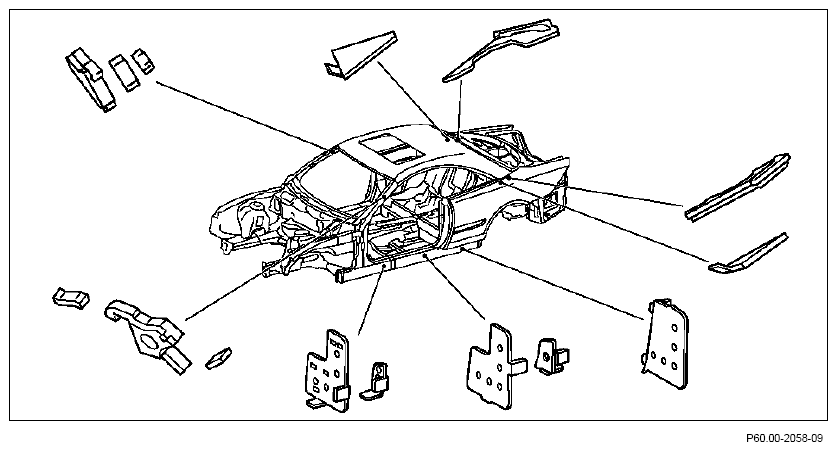

    Fig 3: Identifying Sidewall Foam-Protected Areas
    G10035828Courtesy of MERCEDES-BENZ USA

Foam-protected areas in sidewall
