Observe removal and installation position of shock absorber/ADS - AH32.32-P-0001-01A
WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2019 Mercedes-Benz SLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 210 with CODE 217 (Level control on rear axle with ADS)
Observe the following removal/installation positions of the damping valve!
This is intended to prevent damage to the valve
Remove
Turn shock absorber/ADS so that the damping valve is pointing outwards to prevent damage to the damping valve. The damping valve must not contact the spring tower.
Install
The damping valve must not contact the spring tower during installation.
After installation, turn the shock absorber/ADS inwards, so that the damping valve points to the spring tower at the front end.

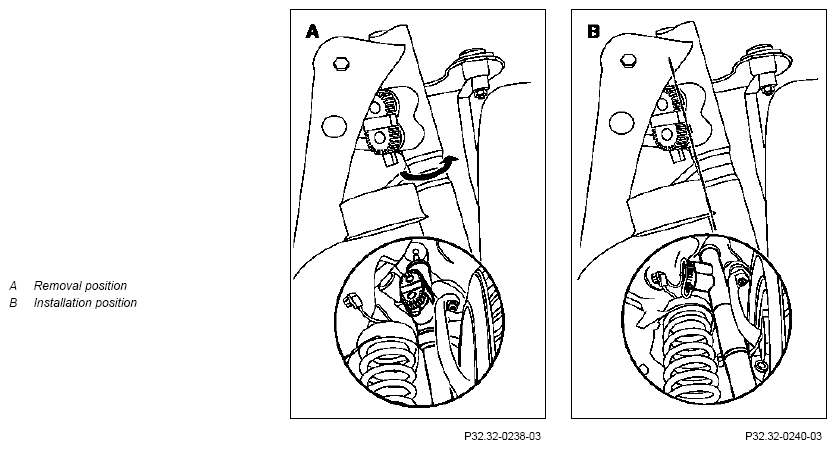

Location of left shock absorber/ADS (right-hand = in mirror reverse)
