Bearing diagram for crankshaft - AH03.20-P-4351-01AW

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602 (except 602.98), 603

Engine 601

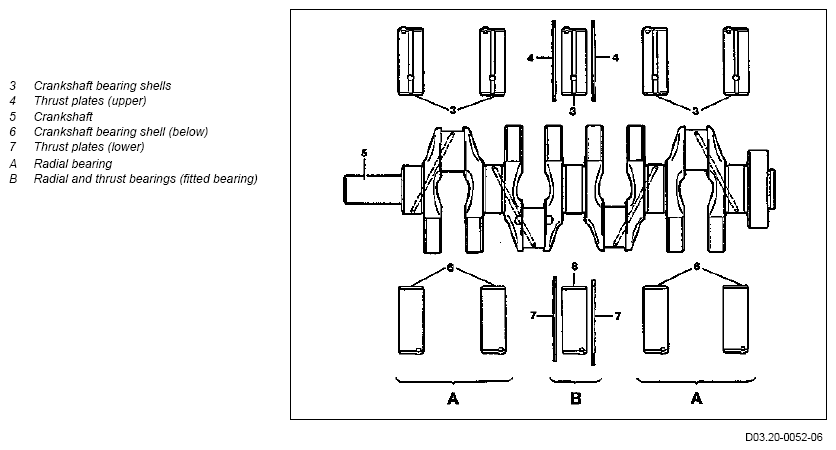

Fig 1: Identifying Crankshaft Bearing Diagram - Engine 601
G10035785Courtesy of MERCEDES-BENZ USA

Engine 602

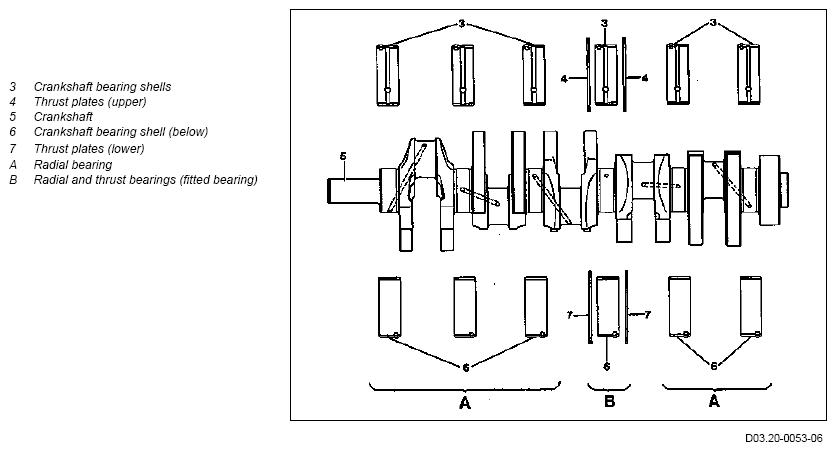

Fig 2: Identifying Crankshaft Bearing Diagram - Engine 602
G10035786Courtesy of MERCEDES-BENZ USA

Engine 603

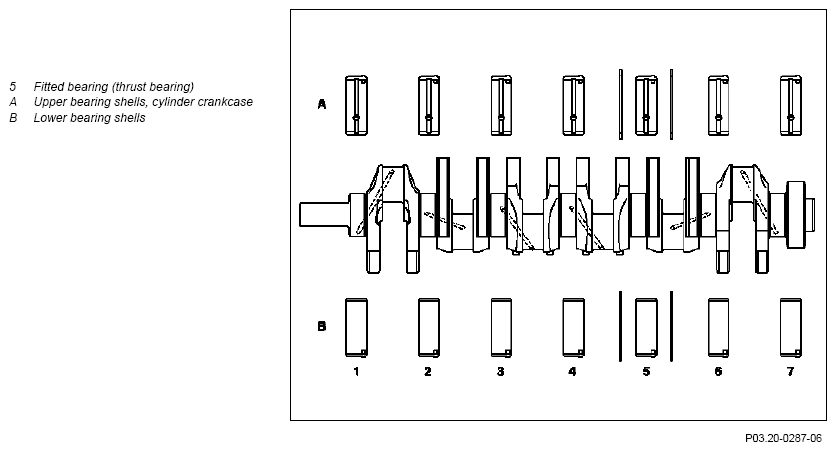

Fig 3: Identifying Crankshaft Bearing Diagram - Engine 603
G10035787Courtesy of MERCEDES-BENZ USA
