Bearing diagram for crankshaft - AH03.20-P-4351-01AK
WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 266.920/940/960/980

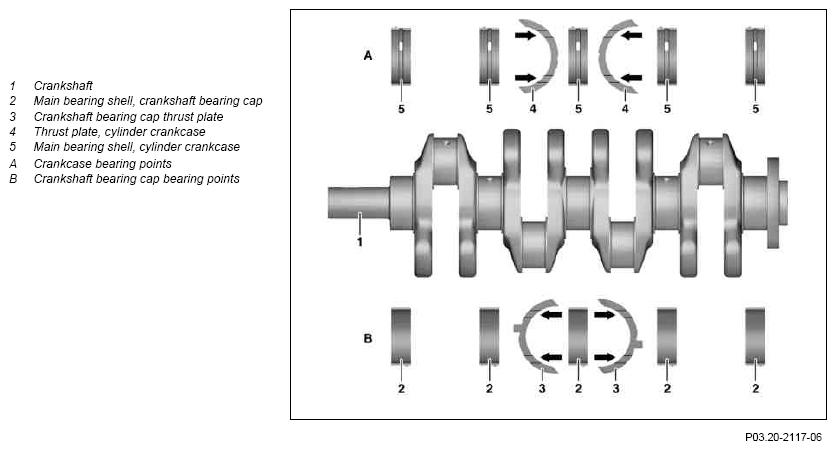

The oil grooves (arrows) in the thrust plates of the crankshaft bearing caps (3) and in the thrust plates of the crankcase (4) must point to the thrust collars of the crankshaft (1). Before installing the crankshaft (1), wet the main bearing shells of the crankshaft bearing caps (2) and the main bearing shells of the crankcase (5) with engine oil.
The thrust plates for the crankshaft bearing cap (3) in the crankshaft bearing caps each have a retaining lug as an anti-twist lock. Check anti-twist locks are correctly seated in crankshaft bearing caps.
