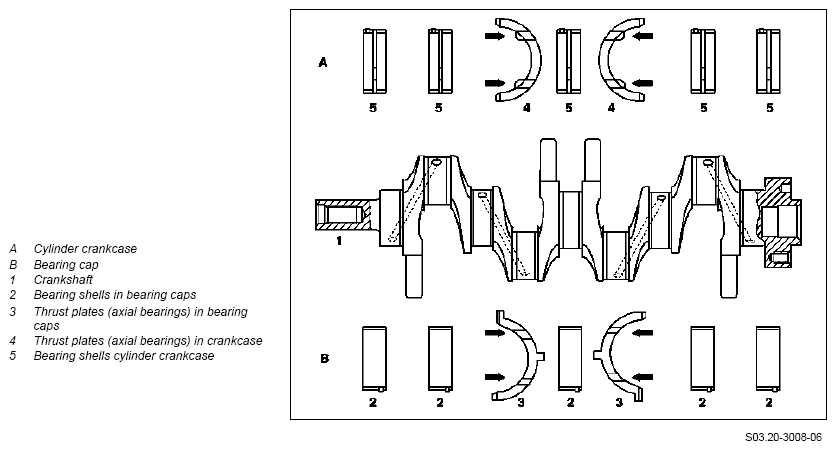

Bearing diagram for crankshaft - AH03.20-N-4351-01A
WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 111
The oil grooves (arrows) in the thrust plates (3) and (4) must point toward the crankshaft thrust collars.
This ensures that the correct installation position is achieved.
Moisten bearing shells (2) and (5) with engine oil before inserting crankshaft.
The thrust plates (3) in the bearing cap(s) have two retaining lugs each as an anti-twist lock.
