Assignment of pistons to cylinder bore - AH03.10-B-0001-02A
WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 611, 612
Engine 612
Courtesy of MERCEDES-BENZ USA

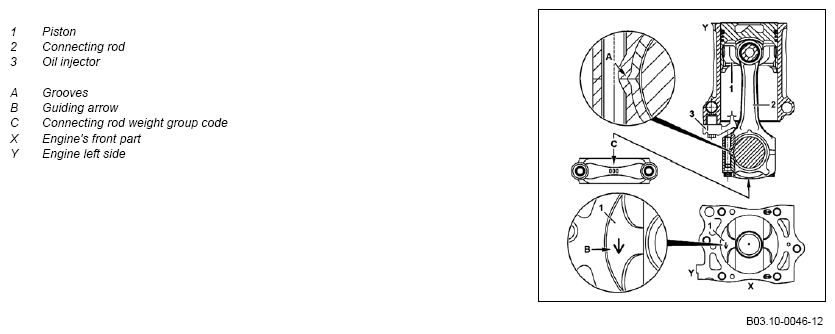

Pay attention, during the piston assemblage (1) to have the "B" arrow, located on the top, facing the engine's front part (water pump side) and to keep the connecting rod (2) "A" groove side, (which serve for the shells fastening), facing the exhaust manifold (engine's left side).
Consequently, in order to assemble the piston (1) in the connecting rod (2), pay attention to keep the connecting rod's "A" grooves (2) and the piston's skirt bevel, relief to avoid contact between the piston and the oil injector (3), are kept facing the same side.
The connecting rods installed in a same engine must pertain to the same weight group. The weight groups are identified in the connecting rod's cap wit the "C" codes, as indicated below:
CONNECTING ROD DESCRIPTION
| Groups |
I |
II |
III |
IV |
| Code C |
0 |
00 |
000 |
0000 |
