Notes on sealant path for timing case cover - AH01.40-P-1000-01VA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273

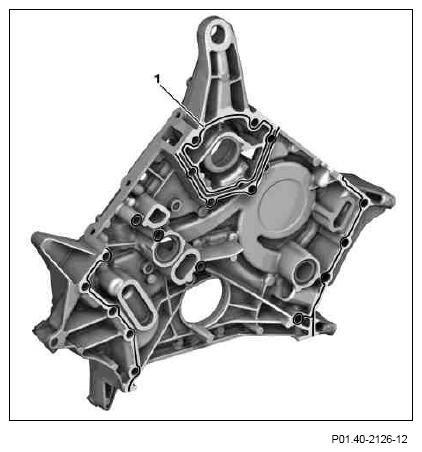

The lines (1) identify the application of the sealant.
The sealing surface must be cleaned. Sealant should be applied only to the specified surface, in the form of a bead of height and width 1.5 mm 0.5 mm. The sealing compound must be applied within 10 min. The sealant bead must not be spread. Use only the sealant indicated in repair materials.
